Parts of EVAP Canister System, Removing and Installing

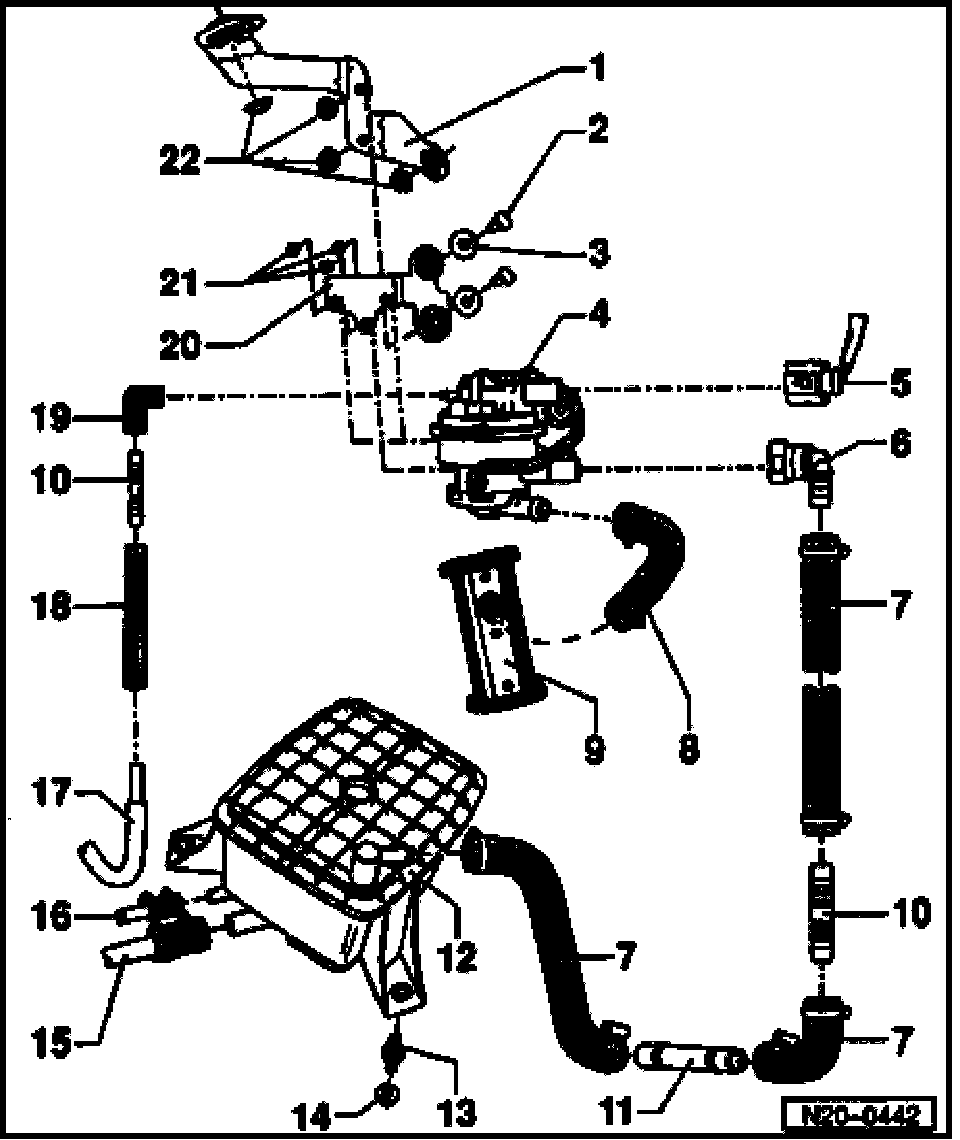

Parts of EVAP canister system, removing and installing







1 Bracket for diagnostic pump
- Bolted to chassis
2 Bolt
3 Washer
4 Leak detection pump (LDP) -V144-*
- Under wheel housing liner in rear left wheelhousing
5 Connector
- 3-pin
6 Clutch
- To disengage, squeeze together at front
7 Connection hose
- Pressure side
8 Connection hose
- Intake side
9 Air filter for diagnostic pump
10 Connecting piece
11 Connection tube
12 EVAP canister
- In spare wheel well at vehicle floor
13 15 Nm
14 10 Nm
15 To Evaporative Emission (EVAP) Canister Purge Regulator Valve-N80-
- In engine compartment at air filter, item 11
16 Vent line
- Vehicles with engine code AEB:
- from gravity valve at fuel tank, item 5

- Vehicles with engine code ATW:
- from gravity valve at fuel tank, item 7

17 Vacuum line
- To check-valve at intake manifold, item no. 7
18 Connection hose
- Vacuum side
19 Angled connector
20 Bracket for diagnostic pump
21 2 Nm
22 8 Nm
