Rear Light Bulb Holder - Wagon, Removing and Installing

Rear Light Bulb Holder - Wagon From 10.00, Removing And Installing

Removing
- Switch off all electrical consumers, switch off ignition and remove ignition key.
- Open rear light side storage flap.
- Disconnect electrical connector.

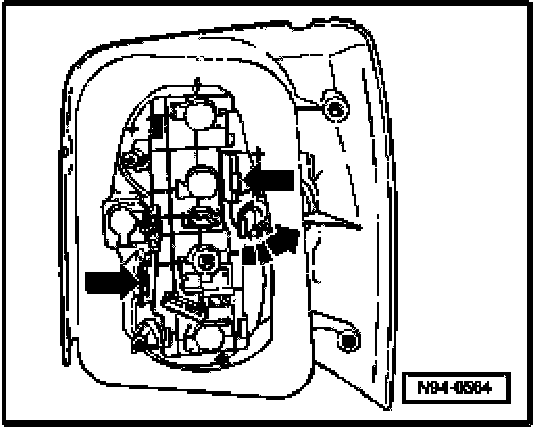

- Depress retainer tabs -arrows- and remove bulb holder to rear.
- To remove turn signal bulb, turn socket counterclockwise -arrow-.

Installing
Install in reverse order of removal.
