Allocation

ABS Bosch 5.3, ABS/EDL Bosch 5.3 and ABS/EDL with ASR Bosch 5.3, application
Brake boost is supported by vacuum pressure.
Characteristics:

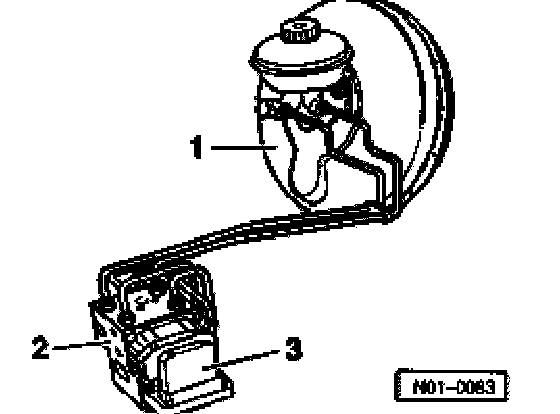

ABS - Bosch 5.3





1 - Brake booster
2 - Hydraulic unit
3 - Control module, 26-pin (bolted to hydraulic unit)

Characteristics:
ABS/EDL - and ABS/EDL with ASR - Bosch 5.3





1 - Brake booster
2 - Hydraulic unit
3 - Control module, 26-pin for ABS/EDL and 31-pin for ABS/EDL with ASR (bolted to hydraulic unit)
4 - Membrane run-off damper (discontinued as of 5.97)
