Lock Carrier, Service Position Assembly Overview

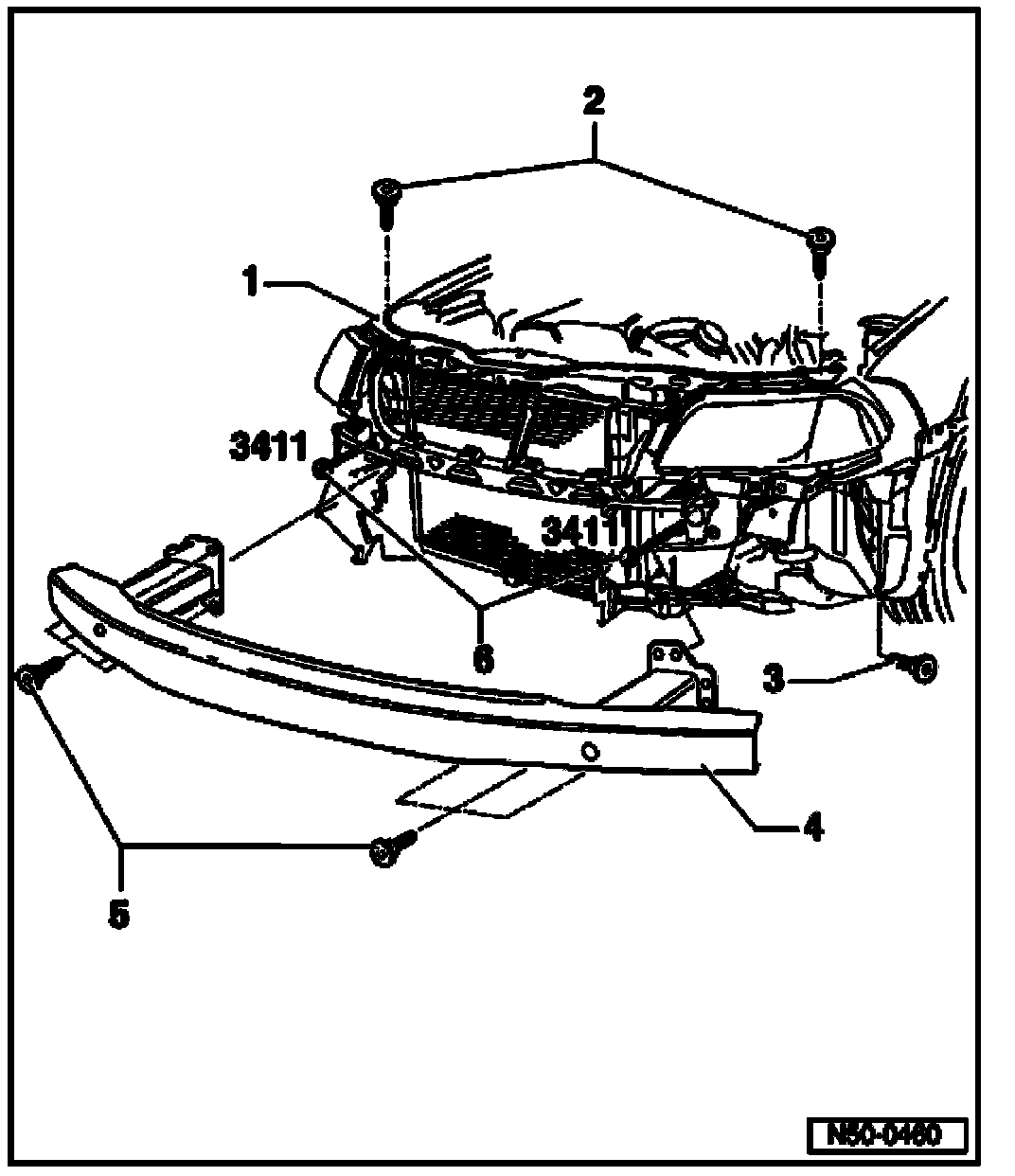

Lock carrier and front bumper reinforcement, service position, assembly overview from 10/00






1. Lock carrier with attachments

2. Bolt
Qty. 2 8 Nm

3. Bolt
Qty. 3 6 Nm

4. Bumper carrier

5. Bolt
Qty 7 50 Nm

6. Guide rods 3411
