Exhaust Gas Recirculation (EGR), Assembly Overview

Exhaust Gas Recirculation (EGR), Assembly Overview

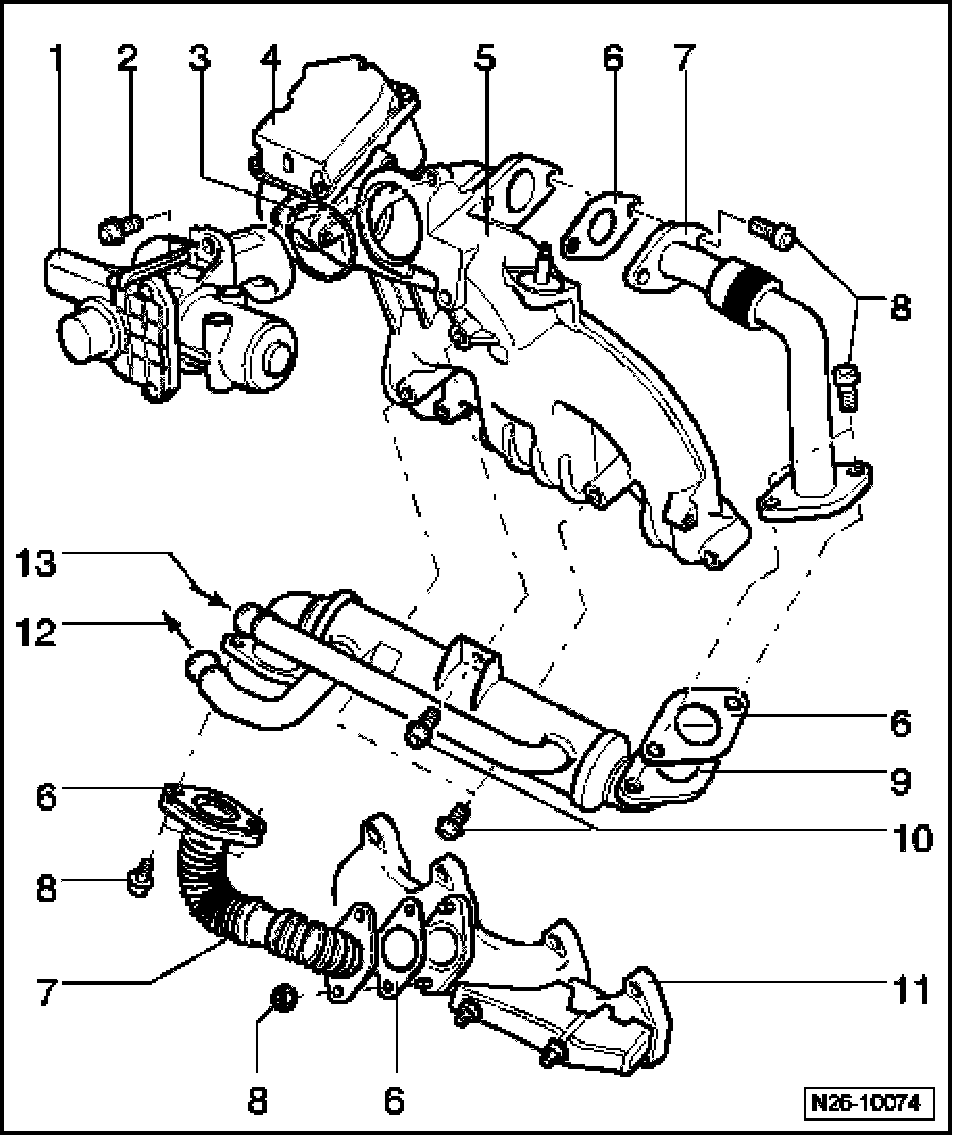

1. Potentiometer for EGR -G212-
- Before assembly, check contact surface on intake manifold for contamination and clean, if necessary.
- After replacing Potentiometer for EGR -G212- ignition must be turned on and then off again. Then, wait one minute for control module after-run (valve is learning, main relay must click during this time)
- After above replacement procedures, start engine and let run at idle for at least 1 minute.
- Then, check DTC memory of Engine Control Module (ECM); there must be no DTC stored in memory
- If a DTC is stored in memory, erase DTC memory and perform procedure again.
2. 10 Nm
3. O-ring
- Replace
4. Motor for intake flap -V157-
5. Intake manifold
6. Seal
- Replace
7. Connecting pipe
- For Exhaust Gas Recirculation (EGR) system
8. 25 Nm
9. Radiator
- For Exhaust Gas Recirculation (EGR) system
10. 10 Nm
11. Exhaust manifold
12. To heat exchanger
13. From connection fitting
