Mode 06 Request On-board Monitoring Test Results



.01.00.00 MODE 06 REQUEST ON- BOARD MONITORING TEST RESULTS

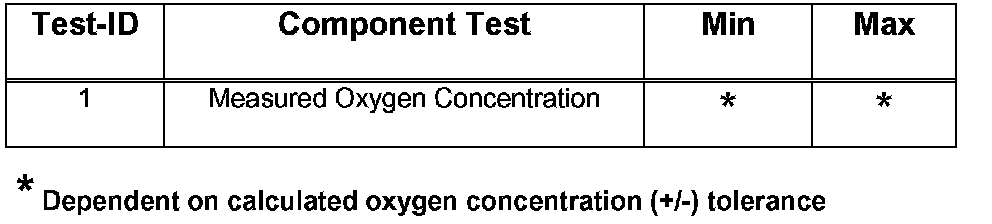

Mode 06 - TID 01 Heated Oxygen Sensor

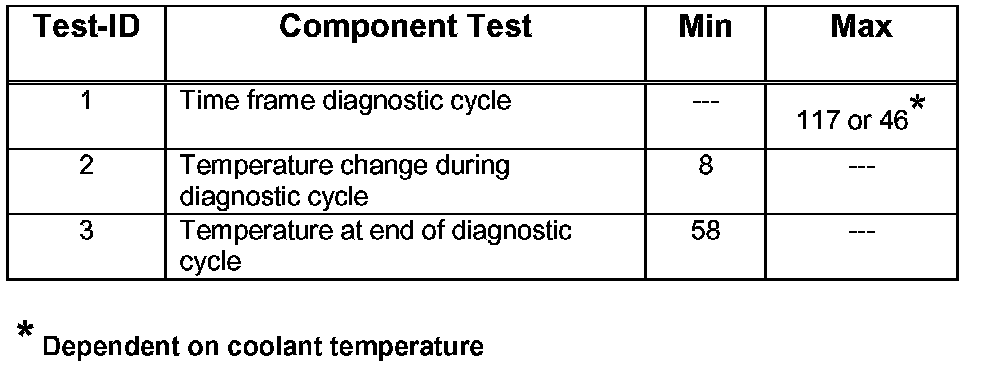

Mode 06 - TID 09 Engine Coolant Temperature Sensor

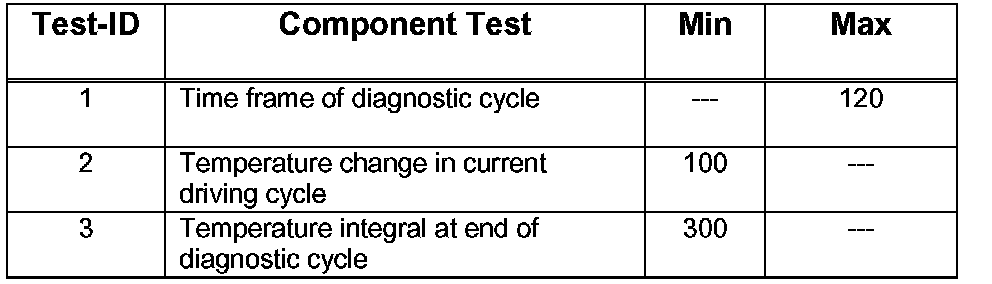

Mode 06 - TID 11 Fuel Temperature Sensor

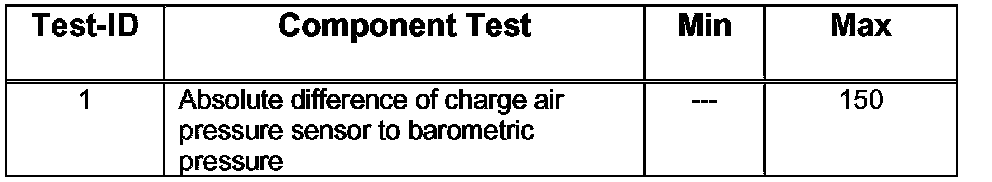

Mode 06 - TID 12 Charge Air Pressure Sensor







Mode 06 - TID 31 Exhaust Gas Recirculation (EGR)
