Programming and Relearning

Adapting Functions And Components

Special tools, testers and auxiliary items required

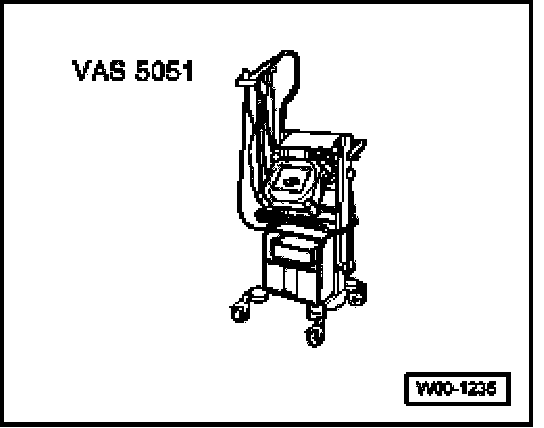

- Vehicle diagnosis, testing, and information system VAS 5051

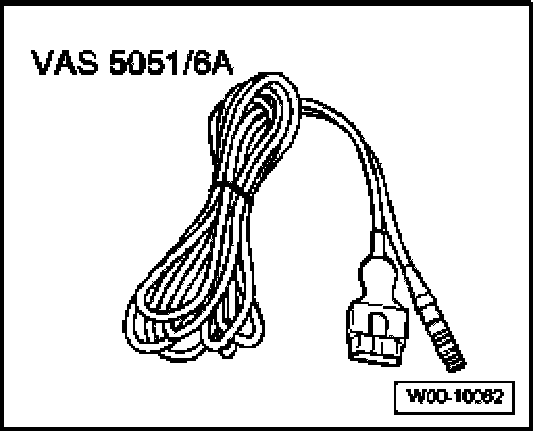

- Diagnostic cable VAS 5051/6A

Work sequence
- Connect vehicle diagnosis, testing and information system VAS 5051 as follows:

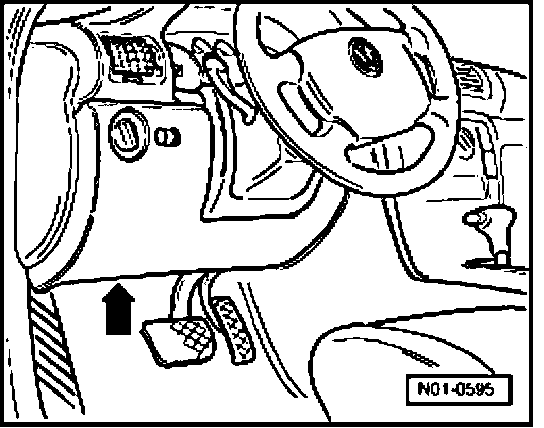

- Connect diagnostic cable VAS 5051/6A connector to Data Link Connector (DLC) - arrow -.

On vehicle diagnosis, testing, and information system VAS 5051, select "guided fault finding".

Once all control modules have been checked:
- Press "Go to" button
- Select "Function/component selection"
- Select "Drivetrain"
- Select "Engine code"
- Select "01-Systems capable of On Board Diagnostic (OBD)"
- Select "engine management system"
- Select "Functions"
- Select "Function or component"
