Exhaust System Components, Removing and Installing - II

Exhaust System Components, Removing And Installing

Special tools, testers and auxiliary items required

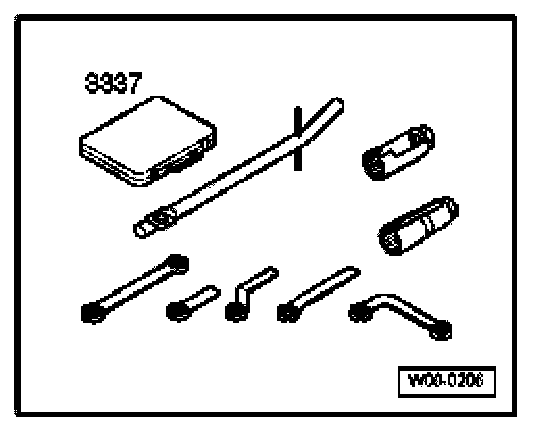

- Ring spanner set 3337

CAUTION: When doing any repair work, especially in the engine compartment, pay attention to the following due to clearance issues:
- Route all the various lines (e.g. for fuel, hydraulics, EVAP system, coolant, refrigerant, brake fluid and vacuum lines and hoses) and electrical wiring so that the original positions are restored.
- Ensure sufficient clearance to all moving or hot components.

NOTE:
- Exhaust manifold, removing and installing, Turbocharger, assembly overview.
- After exhaust system repairs, make sure exhaust system is not under stress and that it has sufficient clearance from the bodywork. If necessary, loosen double clamps and clamp and align exhaust pipe so that sufficient clearance is maintained to the bodywork and the support mounts carry uniform loads.
- Replace self-locking nuts.
- Do not use sealants containing silicone. Particles of silicone drawn into the engine, will not be burned in the engine and will damage the oxygen sensor.
