Engine, Removing and Installing

Engine, removing and installing

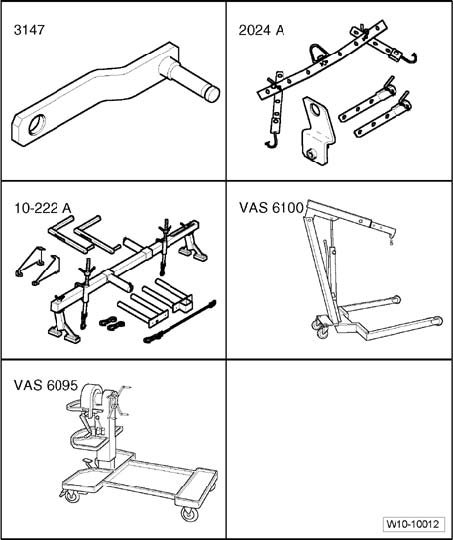

Special tools, testers and auxiliary items required
^ Engine support adapter 3147
^ Lifting tackle 2024 A
^ Engine support bridge 10-222 A
^ Shop crane VAS 6100
^ Engine and transmission holder VAS 6095

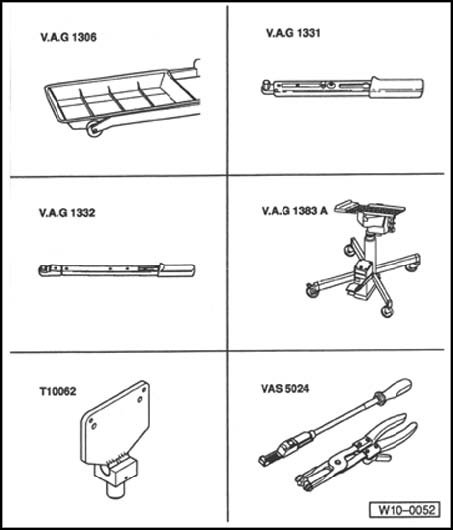

Special tools, testers and auxiliary items required
^ Drip tray V.A.G 1306
^ Torque wrench (5 to 50 Nm) V.A.G 1331
^ Torque wrench (40 to 200 Nm) V.A.G 1332
^ Engine/transmission jack V.A.G 1383 A
^ Support T10062
^ Spring-type clip pliers VAS 5024A

Not illustrated:

Special tools, testers and auxiliary items required
^ Container for removed components V.A.G 1698
^ Engine plug set VAS 6122
^ Grease G 000 100
^ Cable tie





Modifying support T10062
- Drill an additional hole centered at height of lower hole if not yet present.
a = 8.5 mm
