Selector Shaft, Completely Disassembling and Assembling

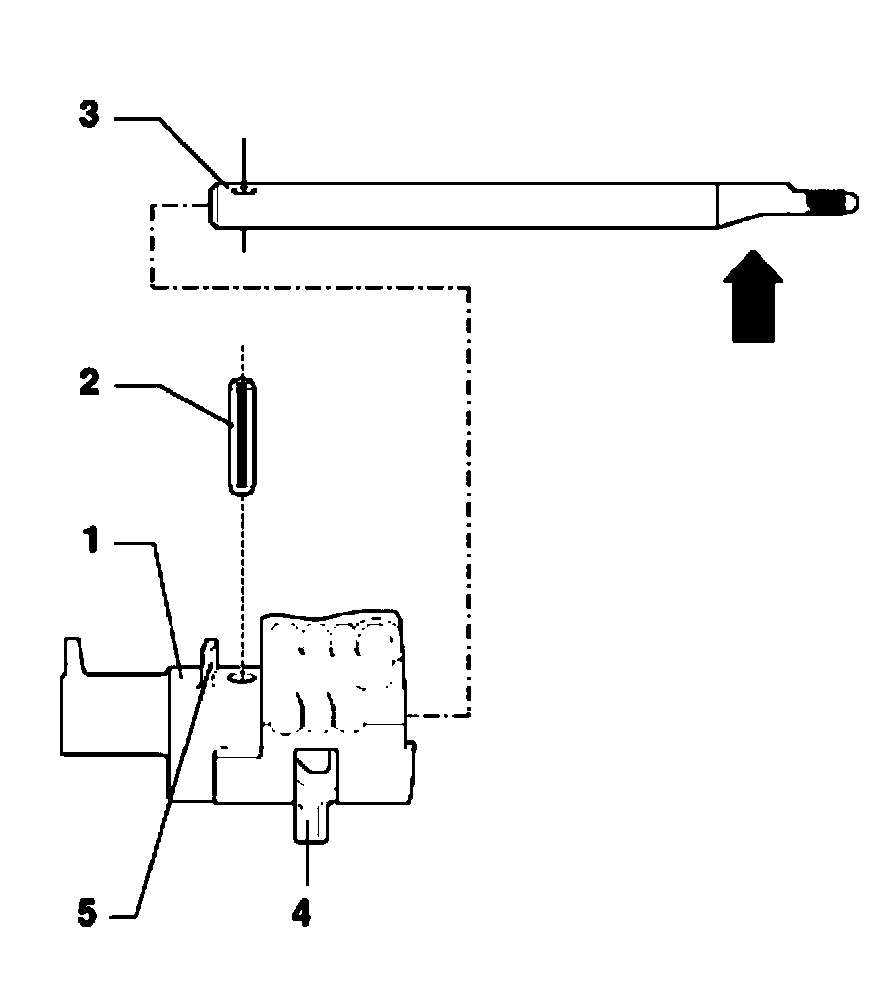

Selector shaft, completely disassembling and assembling





1. Selector cylinder
2. Spring pin/roll pin
^ Always replace
^ Driving out and in flush - Fig.1
^ Installed position of spring pin: slit longitudinal to direction of force
3. Selector shaft
^ Driving out - Fig.2
^ Driving in - Fig.3
^ Installed position: Flattened side (arrow) and selector finger -item
4. face in same direction
4. Selector finger
^ Refer to installed position of item - 3 -
5. Back-up light switch cam

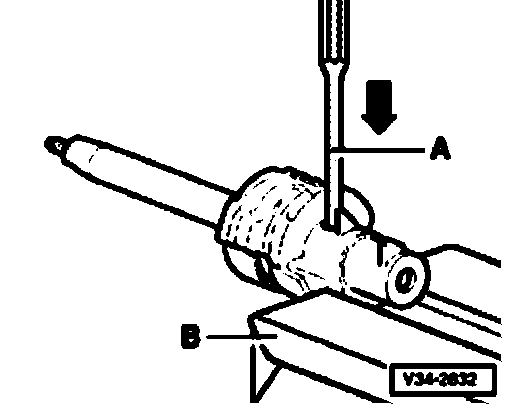

Fig. 1 Driving spring/roll pin out and in flush

A- Drift
B - Jaw protectors

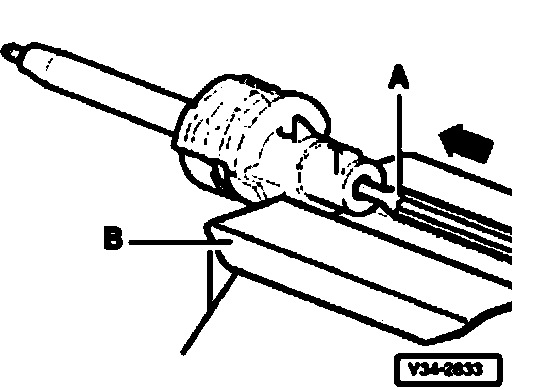

Fig. 2 Driving out selector shaft
A- Drift
B - Jaw protectors

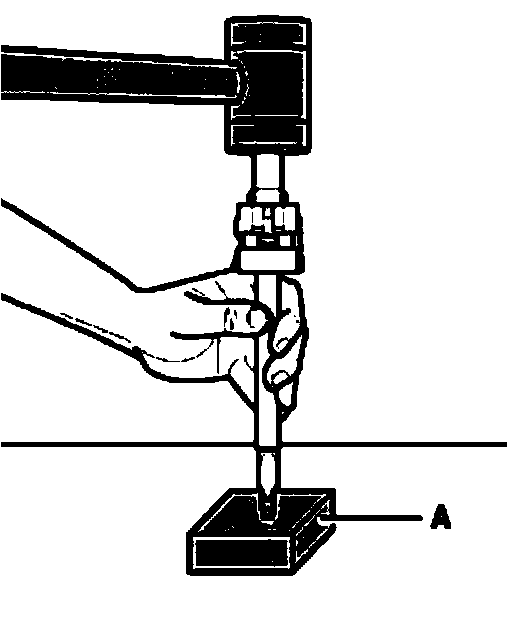

Fig. 3 Driving in selector shaft
A - Wooden support

Note:
^ Line up drillings in selector shaft and selector cylinder.
^ Flattened part of selector shaft and selector finger of selector cylinder face in the same direction.
