Input Shaft, Pinion Shaft, Hollow Shaft and Selector Mechanism, Transmission Side, Removing and Installing

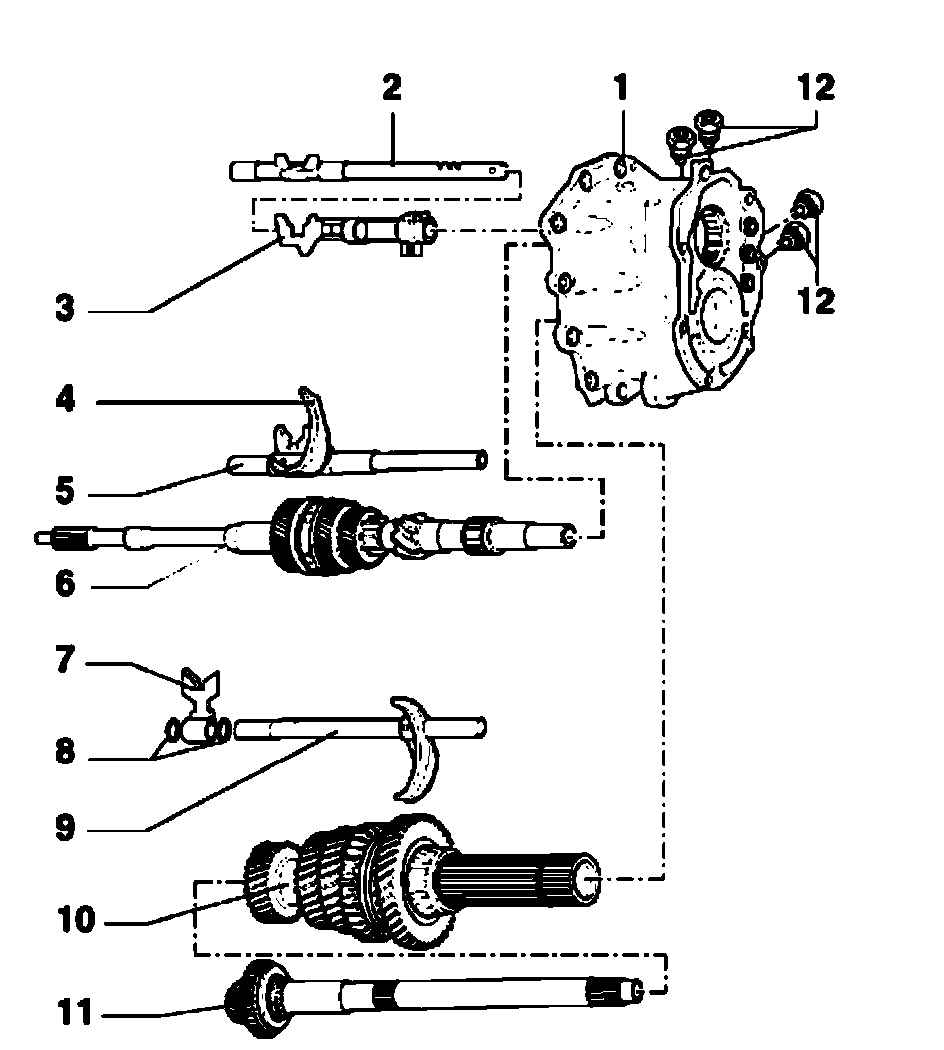

Input shaft, pinion shaft, hollow shaft and selector mechanism, transmission side, removing and installing





1. Gear carrier
2. Selector rod for 5th and 6th gear
3. Yoke for reverse gear
^ Removing ball sleeve; Refer to Fig. 3
^ Installing ball sleeve; Refer to Fig. 4
4. Selector fork for 3rd and 4th gear
5. Selector rod for 3rd and 4th gear
6. Input shaft
7. Yoke for 1st and 2nd gear
^ Can be replaced separately
8. Circlip
^ Qty 2
9. Selector rod for 1st and 2nd gear
^ Replace only complete with selector fork for 1st and 2nd gear with pins
10. Hollow shaft
11. Pinion shaft
12. Locking bolt, 50 Nm
^ Qty 4
^ Install with sealing paste AMV 188 001 02
