5TH and 6TH Gear, Removing and Installing

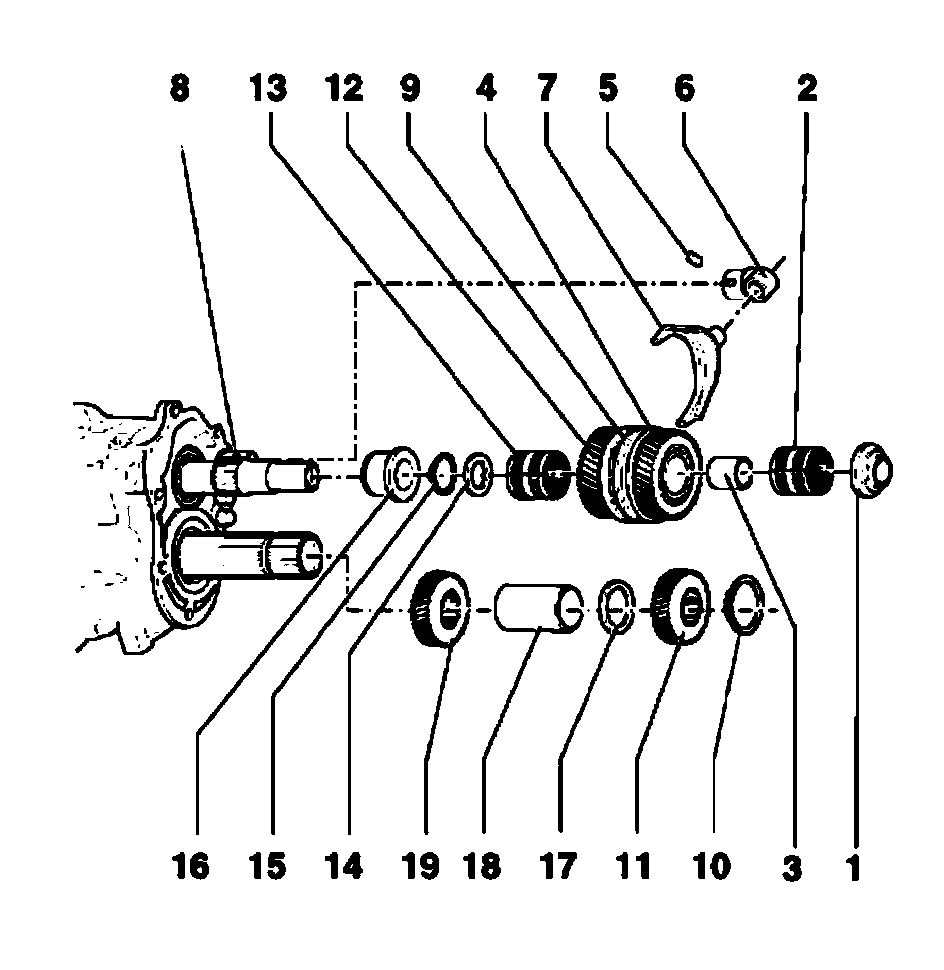

5th and 6th gear, removing and installing





1. 1st inner race for 4-point bearing
2. Needle roller bearing
^ For 5th gear
3. Inner race for needle roller bearing
4. Selector gear for 5th gear
5. Spring pin
6. Yoke for 5th and 6th gear
7. Selector fork for 5th and 6th gear
^ Can be replaced alone
8. Selector rod for 5th and 6th gear
9. Locking collar/synchronizing hub for 5th and 6th gear
10. Circlip
11. 5th gear wheel
12. 6th gear wheel
13. Needle roller bearing
14. Thrust washer
15. Circlip
16. Inner race
17. Washer
18. Spacer sleeve
19. 6th gear wheel
