Code Letters, Transmission Application, Ratios, Capacities

Part 1:

Part 2:

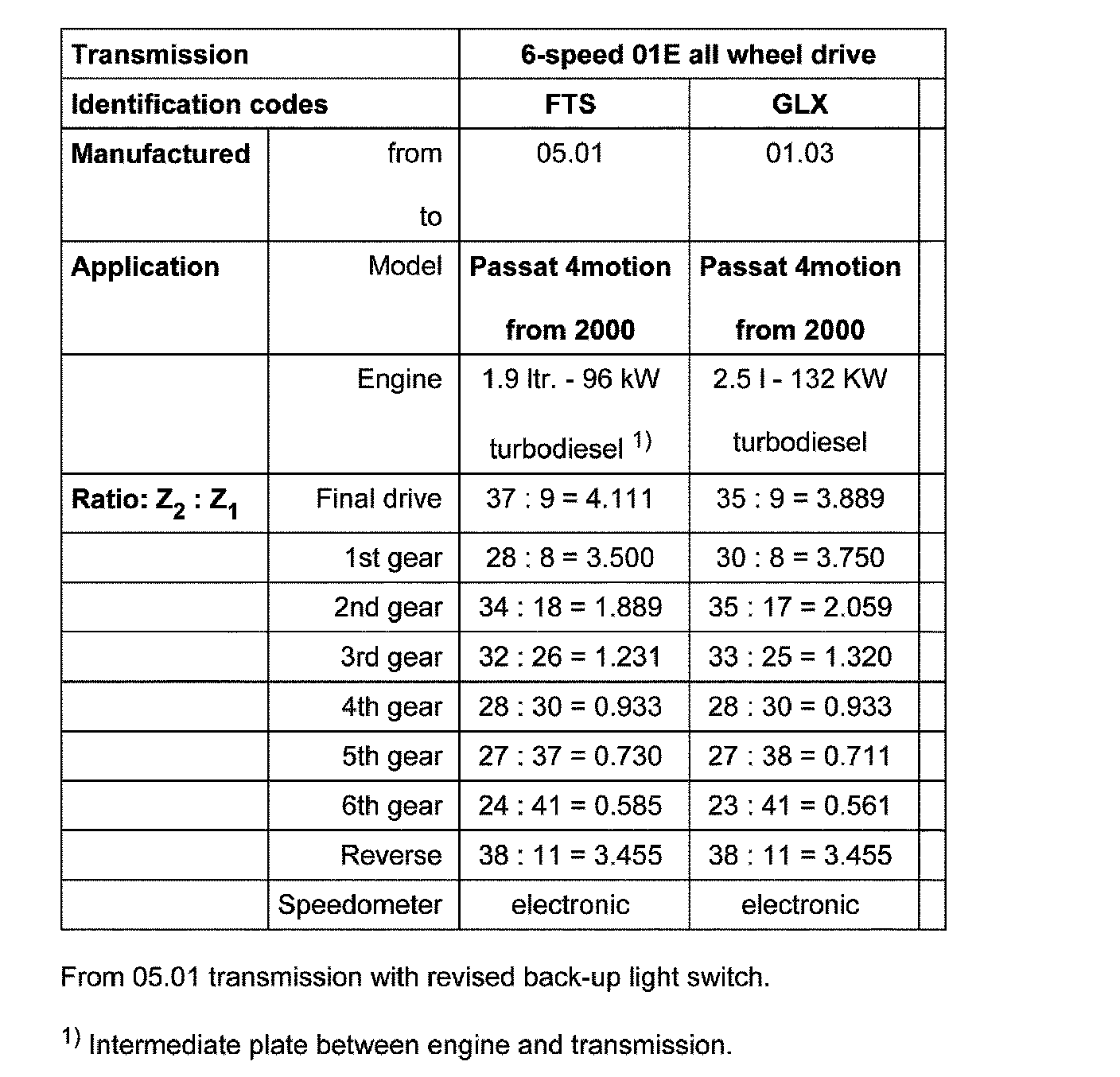

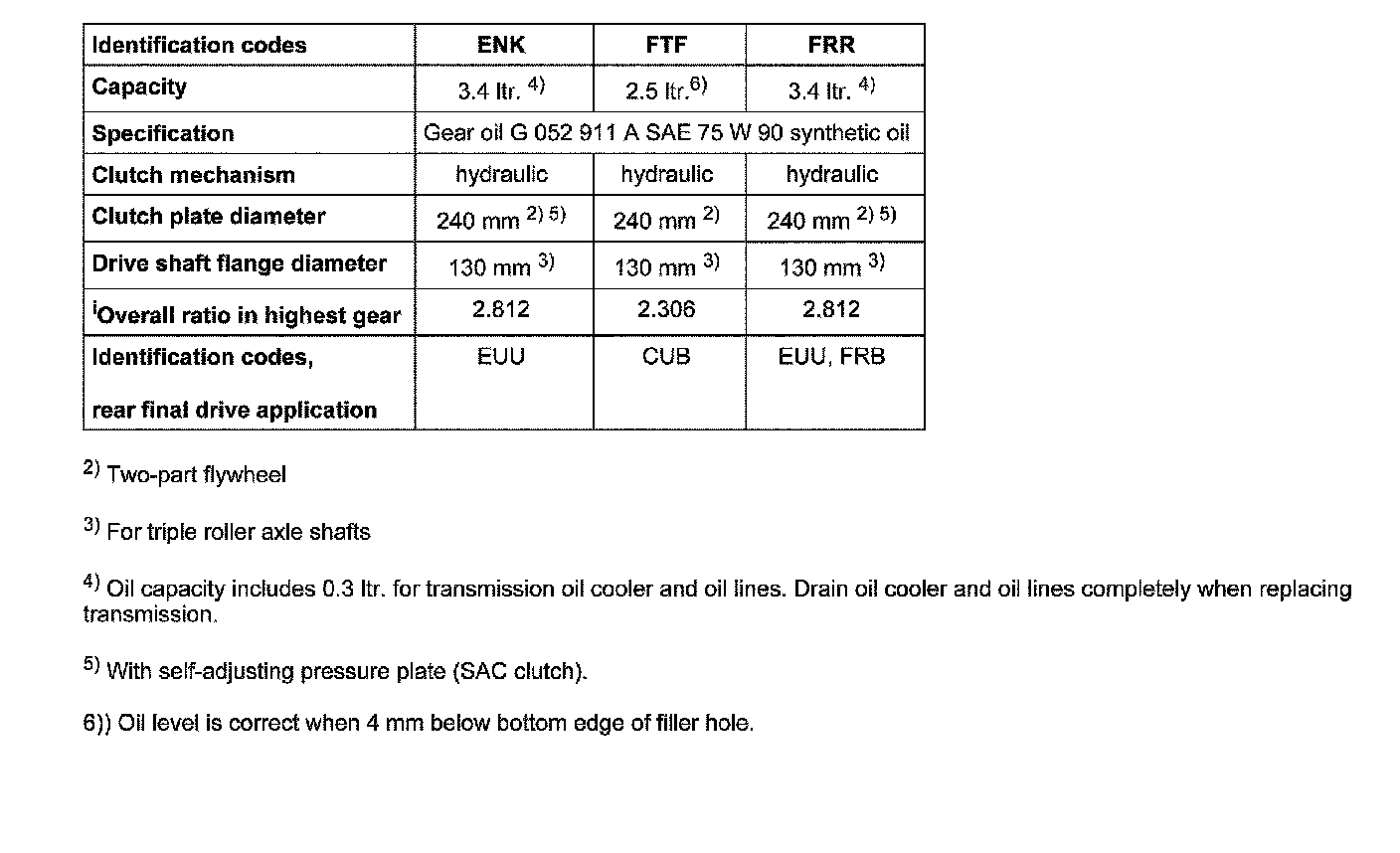

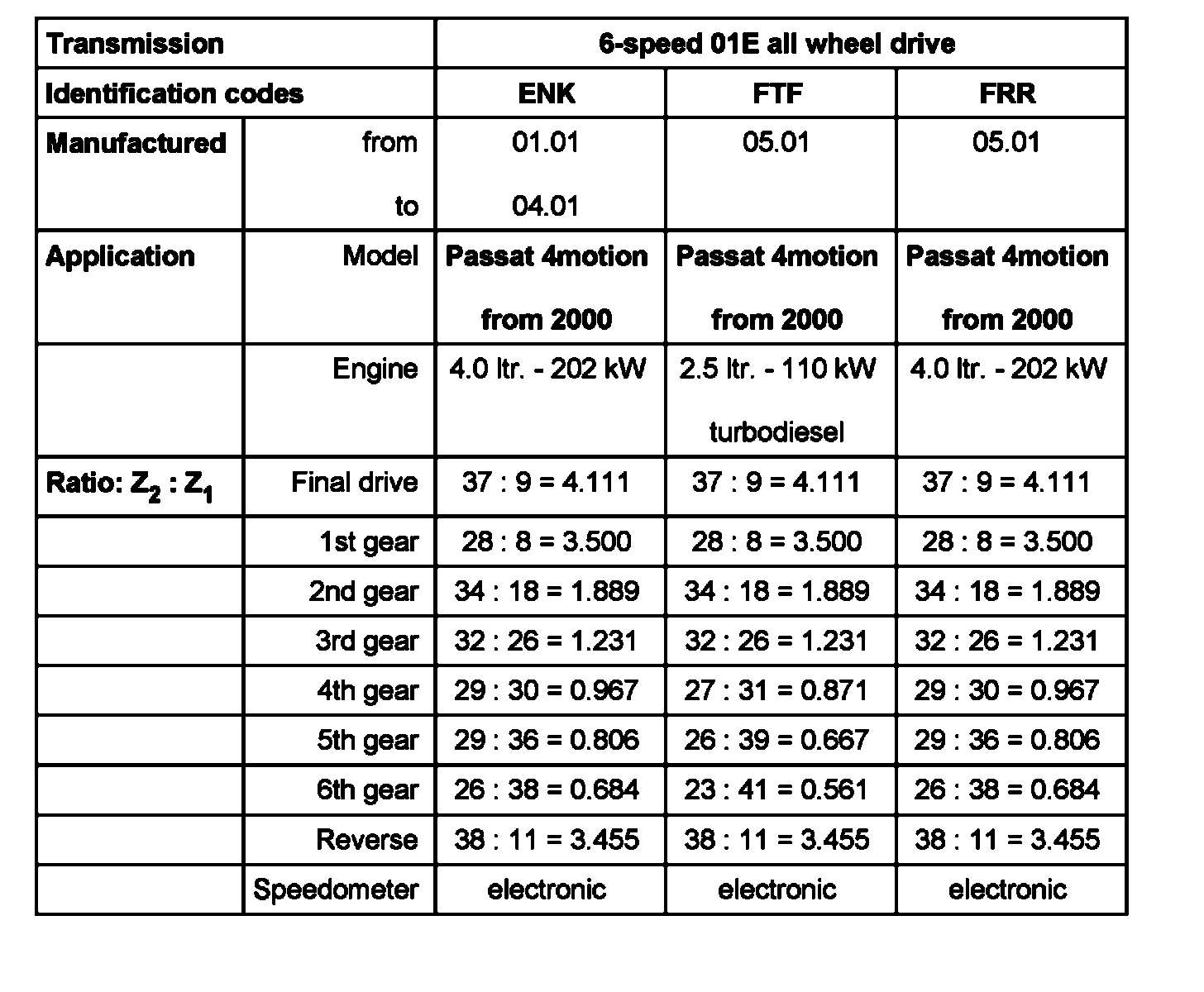

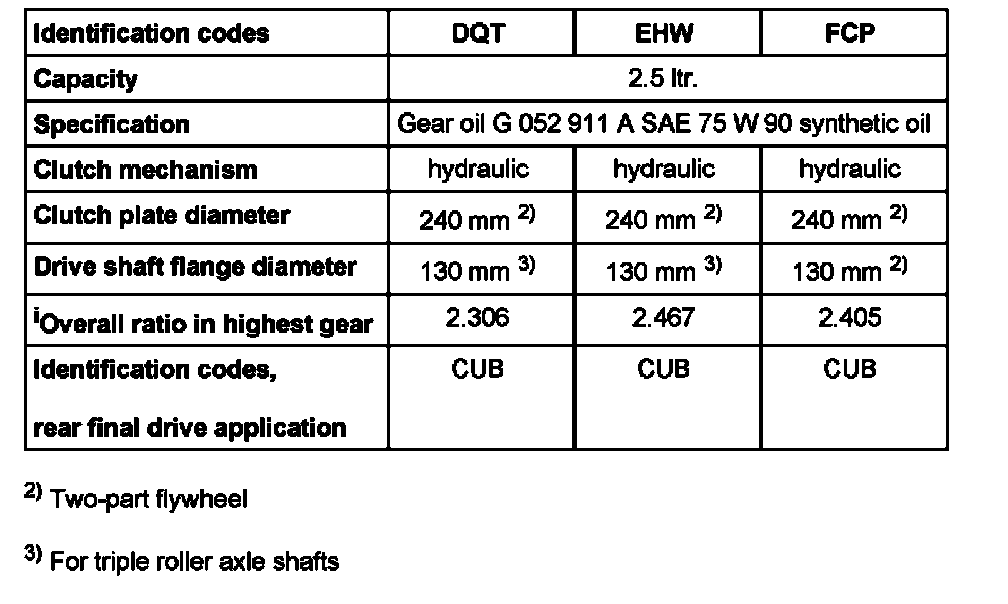

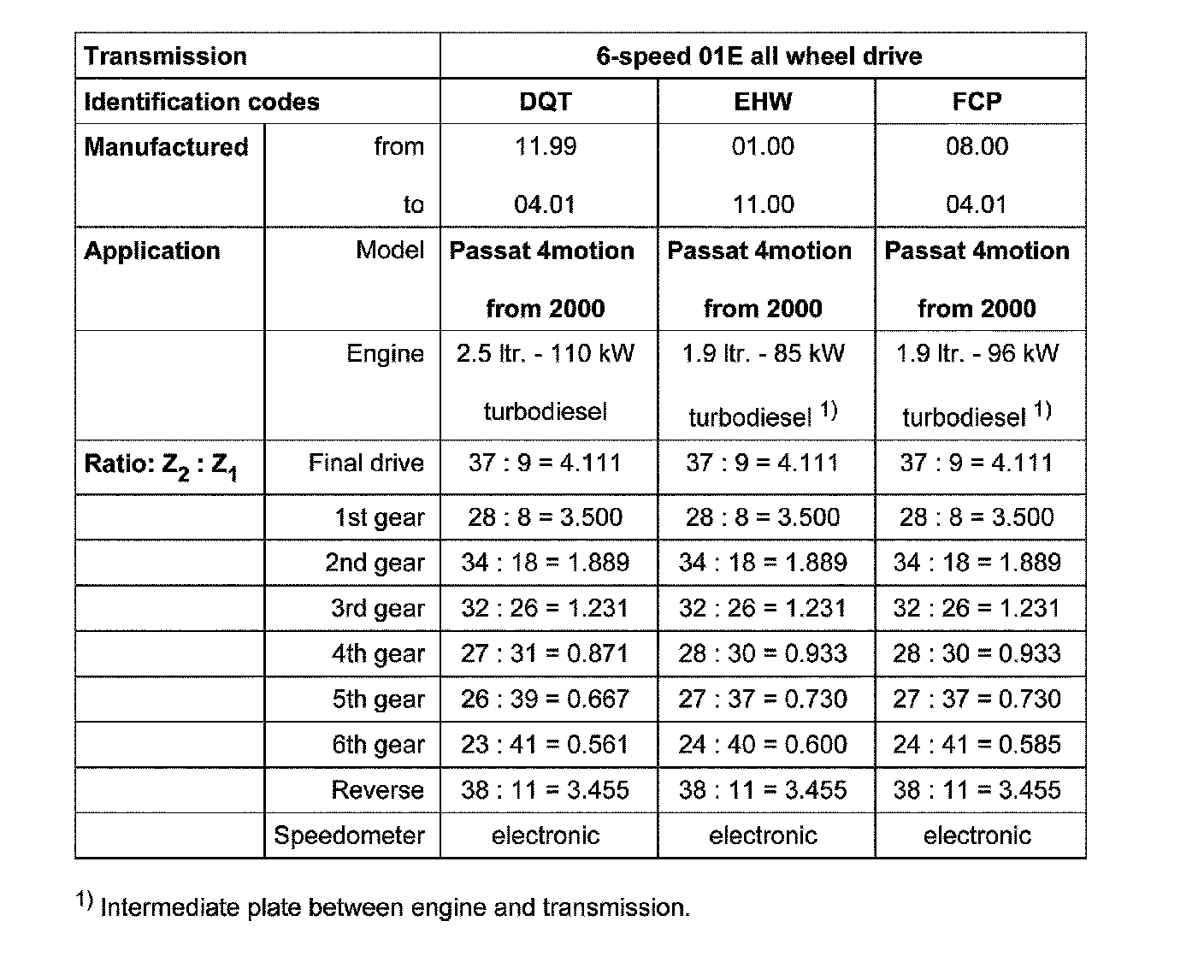

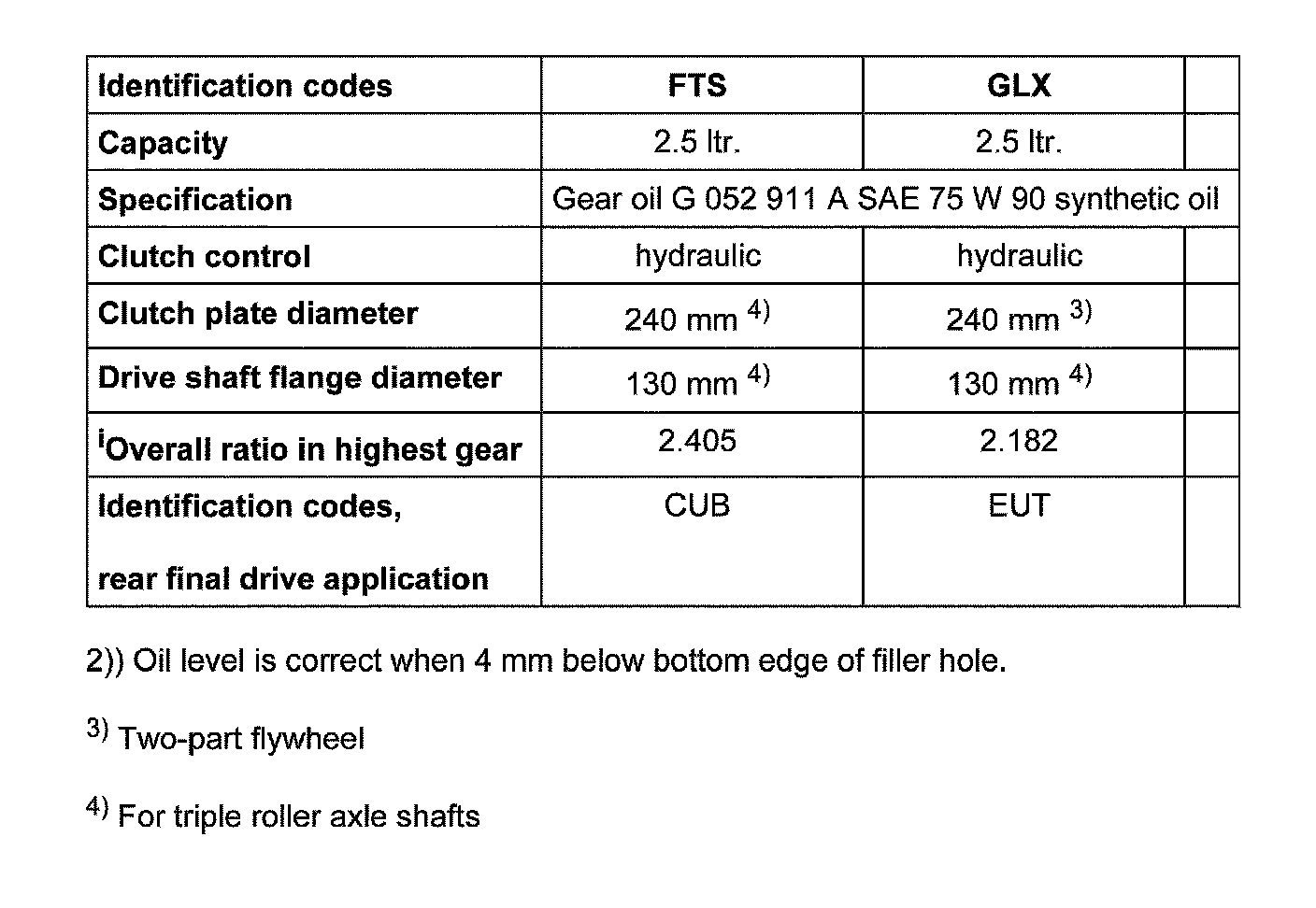

Code letters, transmission application, ratios, capacities

Determine clutch plate using the parts catalog.

Part 1:

Part 2:

From 05 01 transmission with revised back-up light switch.

Part 1:

Part 2:

From 05 01 transmission with revised back-up light switch.
Determine clutch plate using the parts catalog.

2) Oil level is correct when 4 mm below bottom edge of filler hole.
