Position of Shims

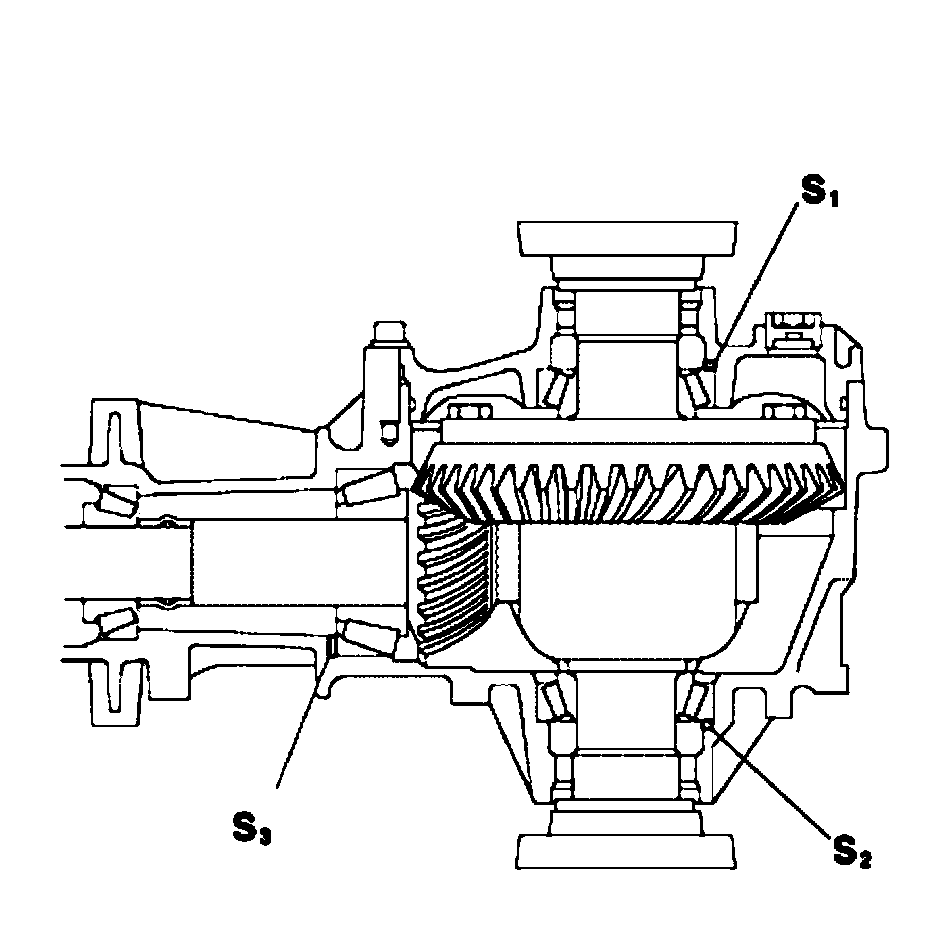

Position of shims
S1 - Shim for ring gear in final drive cover
S2 - Shim for ring gear in final drive
S3 - Shim for pinion shaft in final drive
