Adjustment Overview

Adjustment overview

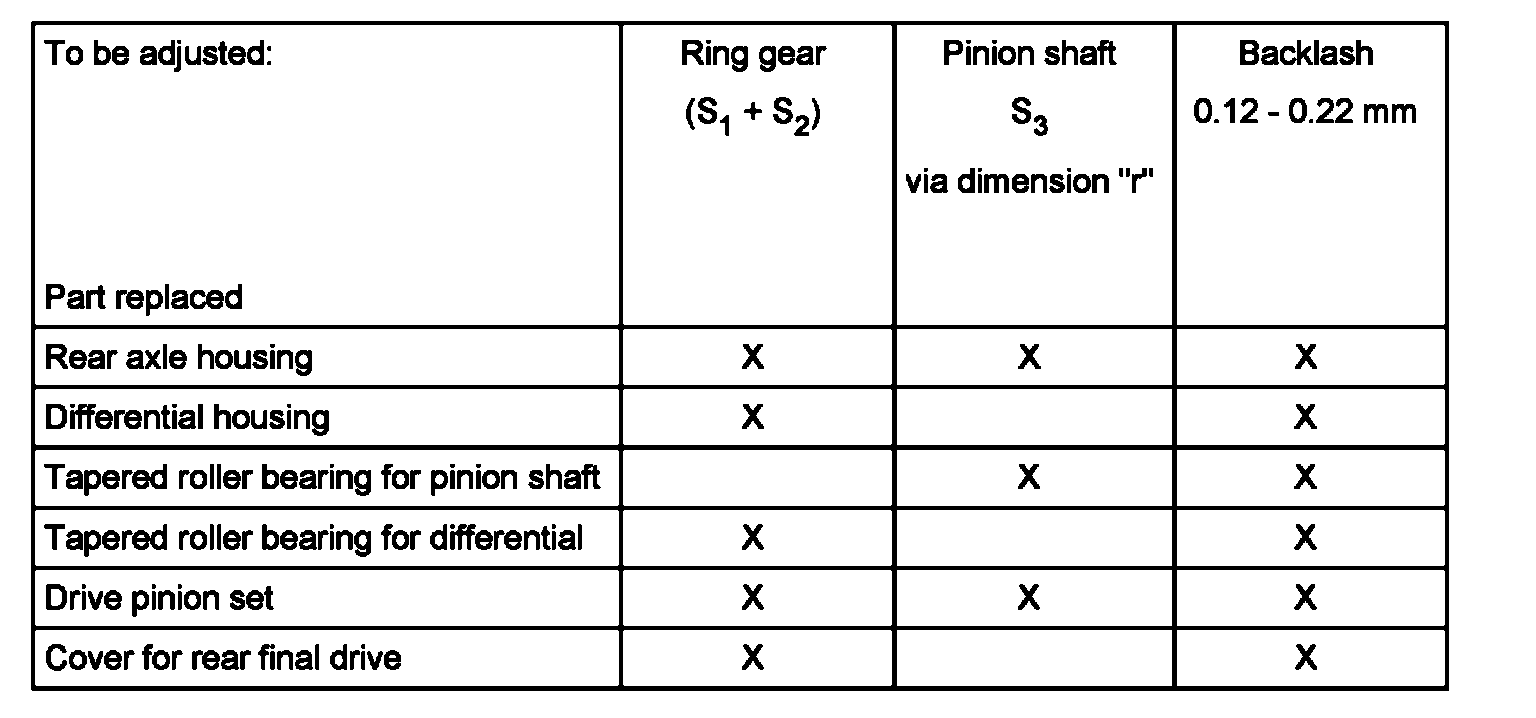

Note: If the final drive has been repaired it is only necessary to adjust the pinion shaft or ring gear and pinion if components have been replaced which have a direct effect on the adjustment of the final drive. Refer to the following table to avoid unnecessary adjustment.
