NOTE: In vehicles with transmission codes DRN, DRD (hydraulic control "E17"), Pressure Control Valve 1 for Auto. Transmission N215- through Pressure Control Valve 4 for Auto. Transmission -N218- are identified as Solenoid Valve 4 -N91- through Solenoid Valve 7 -N94-.

Recommended special tools and equipment
- V.A.G 1526 multimeter or V.A.G 1715 multimeter
- V.A.G 1594 connector test kit
- Wiring diagram

Test requirements
- Respective fuses must be OK
- Battery voltage must be at least 11.5 volts.
- Selector lever must be in -P- position.
- Ground (GND) connections to transmission must be OK.
- All electrical consumers such as, for example, lights and rear window defroster must be switched off.
- Parking brake must be engaged or else daylight driving lights will be switched on.
- Ignition switched off.

Test sequence

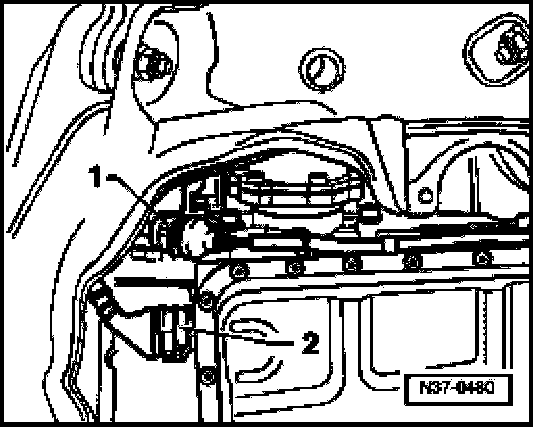

- Disconnect 16-pin harness connector -2-.
Observe safety precautions.
- Check harness connector for contact corrosion and ingress of water.

If harness connector is not OK:
- Repair the malfunction.
- Erase DTC memory of Transmission Control Module (TCM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

If harness connector is OK:
- Check resistance of Pressure Control Valve 1 for Auto. Transmission -N215- through Pressure Control Valve 4 for Auto. Transmission -N218- at 16-pin connector to transmission.

Checking resistance of pressure regulator valves
- Check pressure regulator valve resistance between terminals at 16-pin connector to transmission







NOTE: Resistance value is valid at approx. 20 degrees C. At higher temperatures, resistance value increases.

If one of the specified values is not obtained:
- Replace the corresponding pressure regulator valve:
- Erase DTC memory of Transmission Control Module (TCM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

If specified values are obtained:

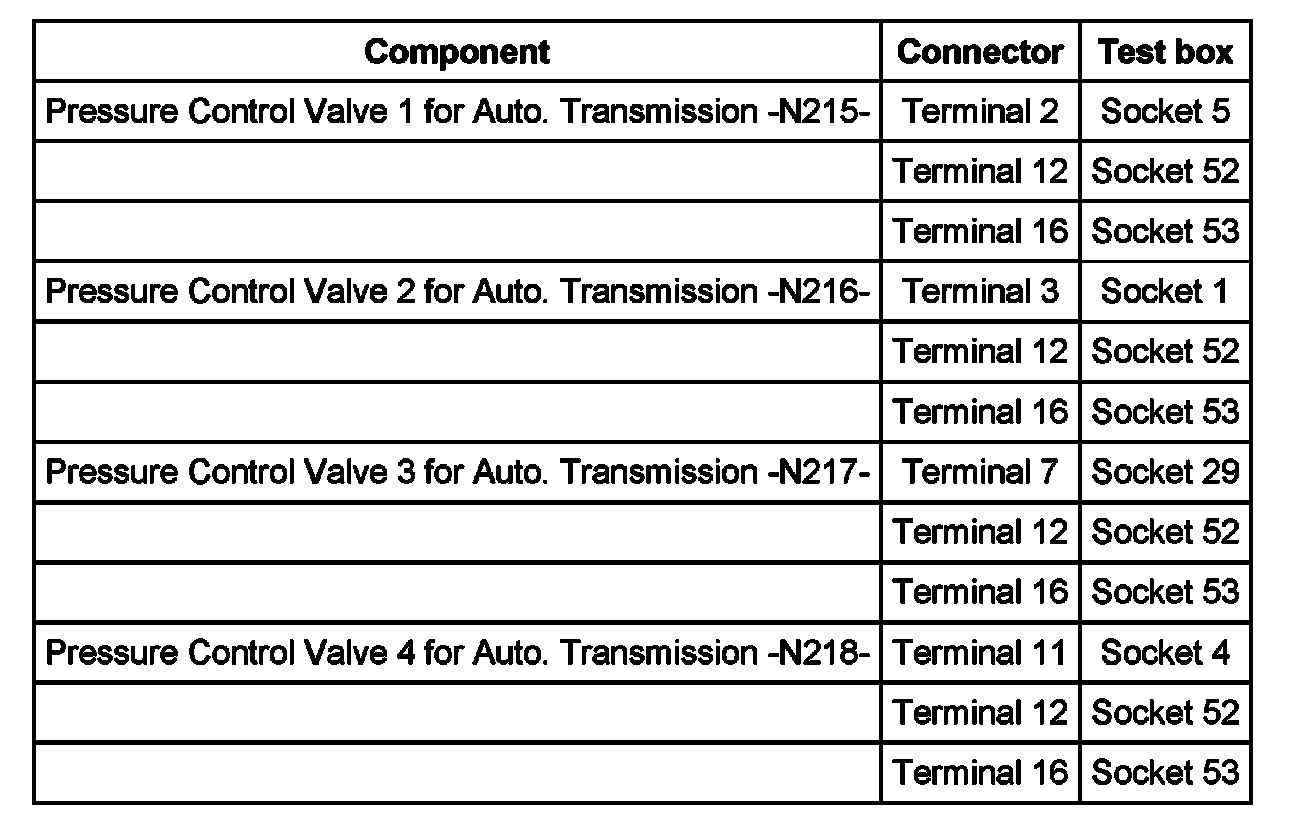

- Check wires to Transmission Control Module (TCM) according to wiring diagram.

Checking wires to Transmission Control Module (TCM)
- Connect test box to Transmission Control Module (TCM) wiring harness. connect test box for wiring test.
- Check wires between test box and 16-pin connector to Transmission Control Module (TCM) for open circuit according to wiring diagram.
Wire resistance: max. 1.5 ohms







- Also check wires for short circuit to each other.
Specified value: Infinite ohms

If no malfunctions are found in wires:
- Replace Transmission Control Module (TCM) -J217-.
