Headlamp Washer Spray Nozzle: Service and Repair

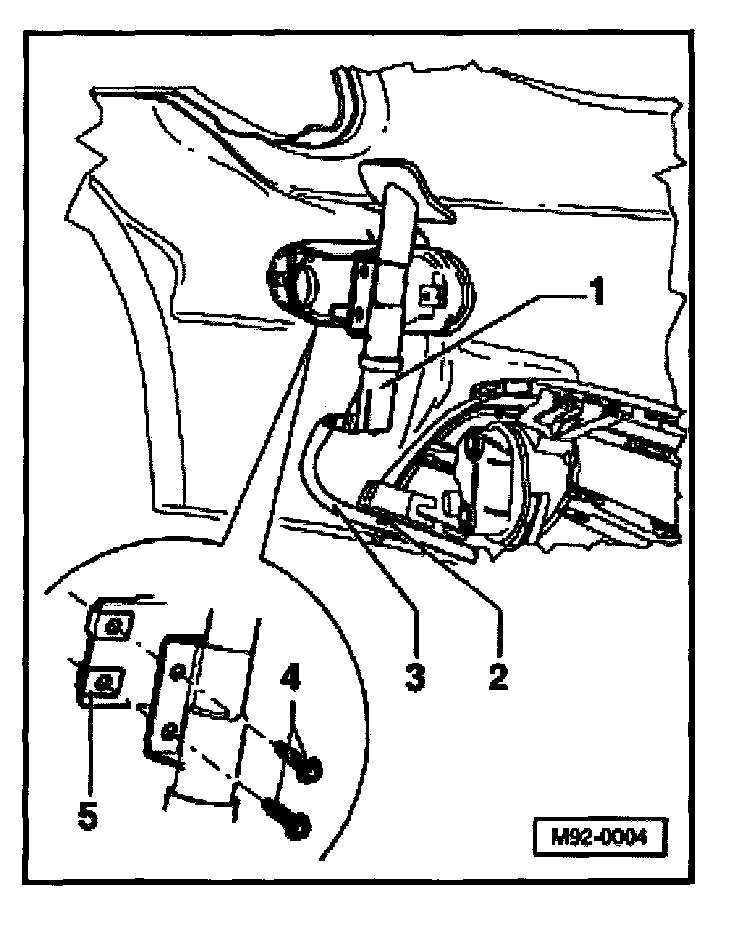

Headlight washer system jets, removing and installing







Removing:
- Remove front bumper cover
- Remove screws -4- from speed nuts -5-.
- Unclip headlight washer system hose -3- from hose clips -2-.
- Pull hose -3- from spray jet carrier -1-.

Installing:
Installation in reverse order of removal.


NOTE: Once installation is complete, bleed headlight washer system by operating system several times.
