Shift Cable: Service and Repair

5 & 6 Speed Manual 02M

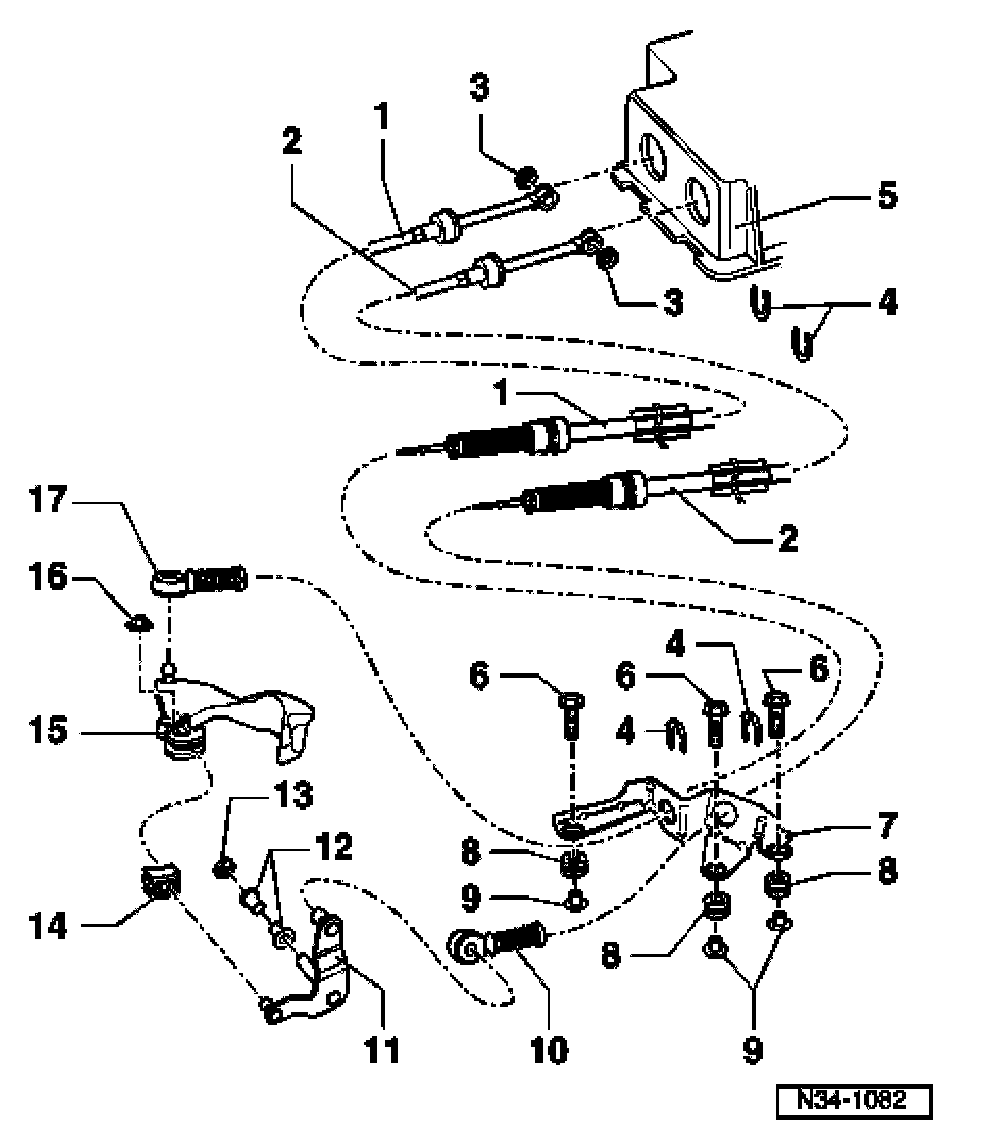

Selector cables, assembly overview

Note: Lubricate all mountings and sliding surfaces with Polyurea grease Part No. G 052 142 A2.





1- Gear selector cable
2- Gate selector cable
- On relay lever
3- Circlip
4- Circlip
- Do not damage cable when removing
5- Shift housing
6- Hex bolt, 25 Nm
- For support bracket
7- Support bracket
8- Bushing
- Support bracket mounting to transmission
9- Distance piece
10- Cable locking mechanism
- For gate selector cable to relay lever
- Not necessary to be replaced
- Secured with securing clip
11- Relay lever
12- Bushing
13- Circlip
14- Shoe
15- Transmission selector lever
16- Hex nut, 20 Nm
- Self-locking
- Always replace
17- Cable locking mechanism
