Selector Forks, Disassembling and Assembling

Selector forks, disassembling and assembling

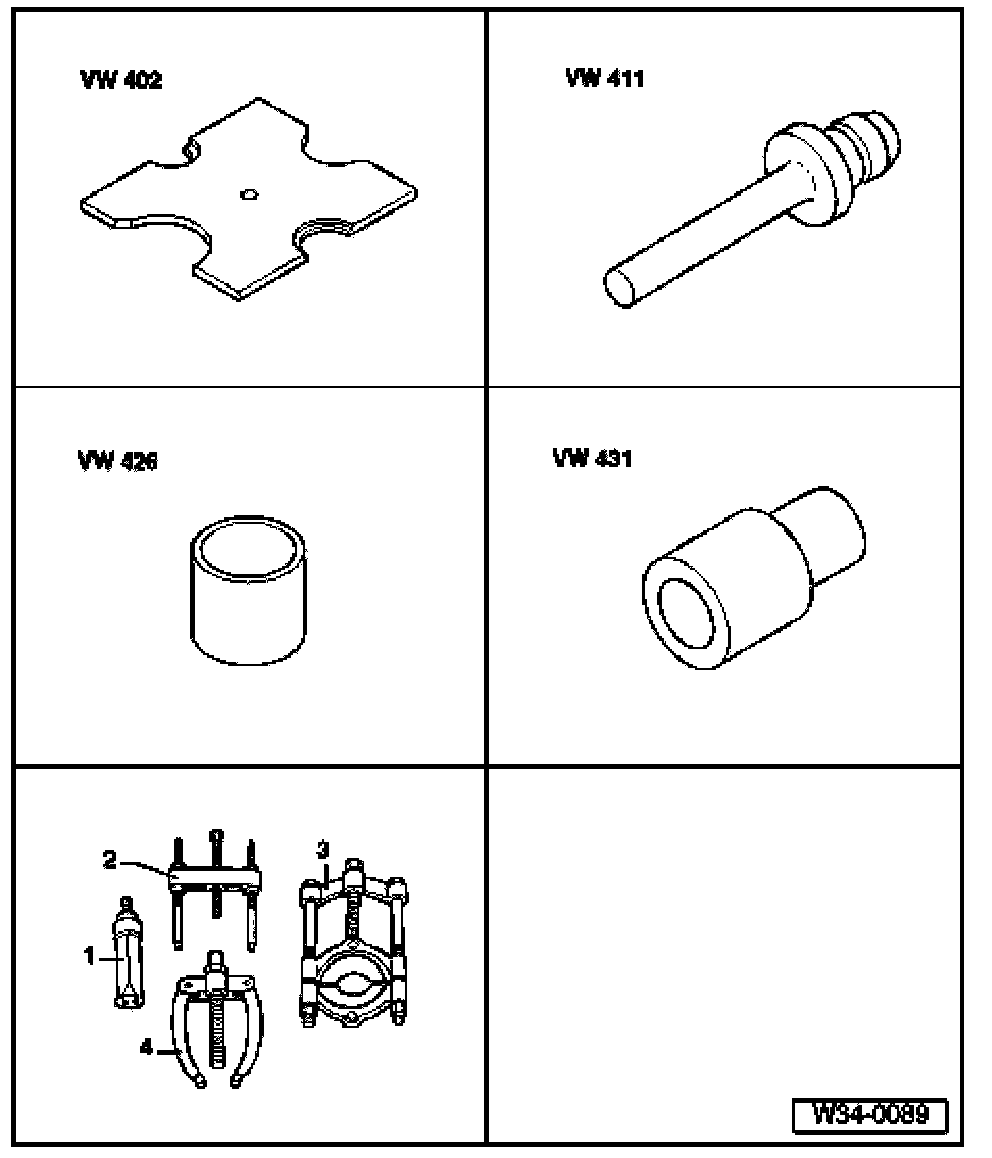

Special tools and equipment
^ VW 402 Thrust plate
^ VW 411 Press tool
^ VW 426 Tube
^ VW 431 Press piece
^ 1-Kukko 21/3 Internal puller
^ 4-Kukko 22/1 Counter-support

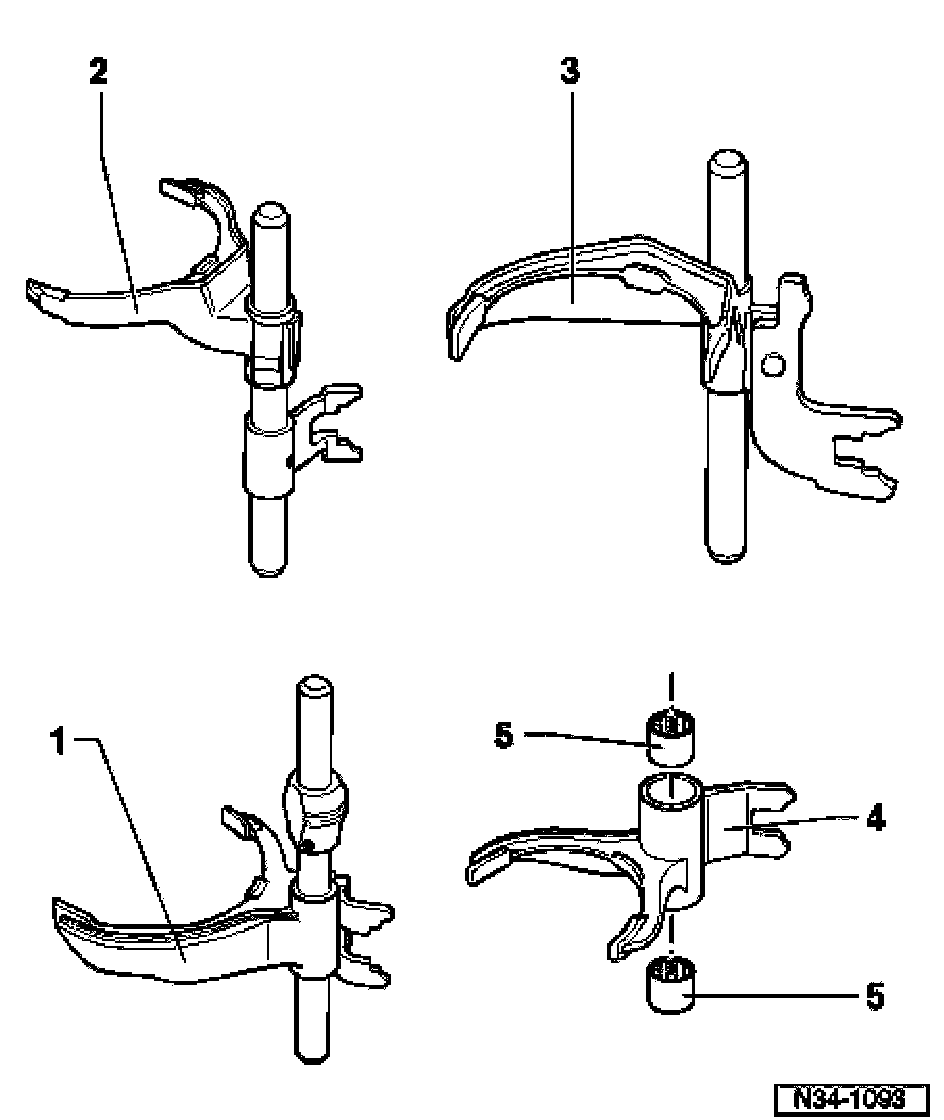

1- Selector rod with 1st and 2nd gear selector forks
2- Selector rod with 3rd and 4th gear selector forks
3- Selector rod with 1st and/5th and reverse gear selector forks
4- Reverse gear selector fork
5- Ball sleeve
^ Pulling out , Refer to Fig. 1
^ Pressing in , Refer to Fig. 2





Fig. 1 Pulling out reverse gear selector fork ball sleeve
^ A - Internal extractor 18 to 23 mm, e.g. Kukko 21/3
^ B - Counter support e.g. Kukko 22/1

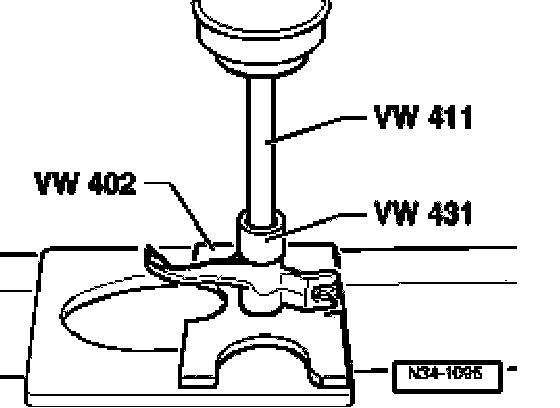

Fig. 2 Pressing in reverse gear selector fork ball sleeve
