Display Group 001

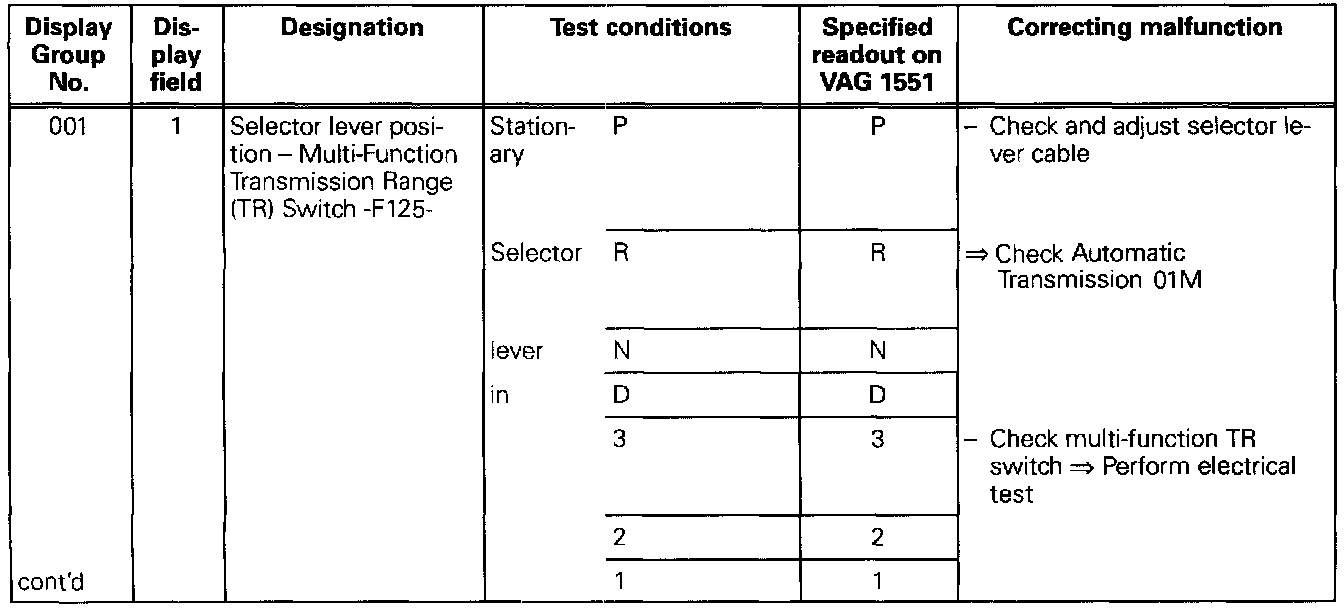

Display Field 1






Display Field 1 (continued)

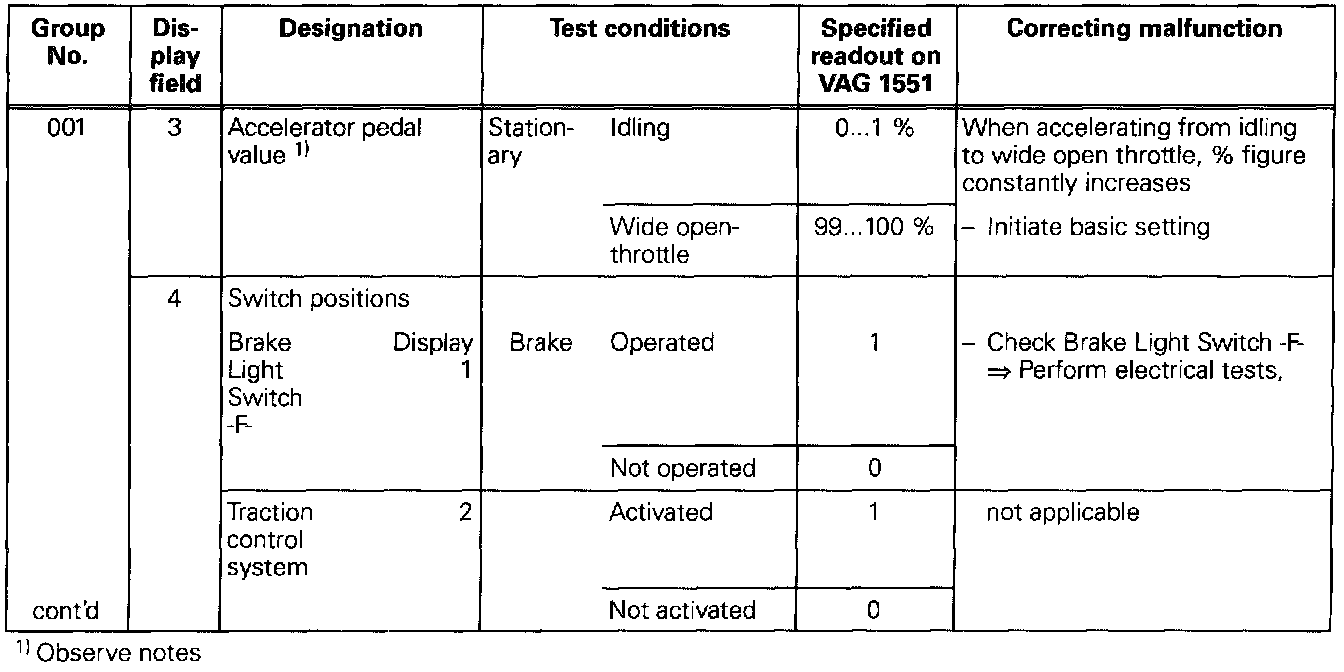

Display Fields 3 and 4

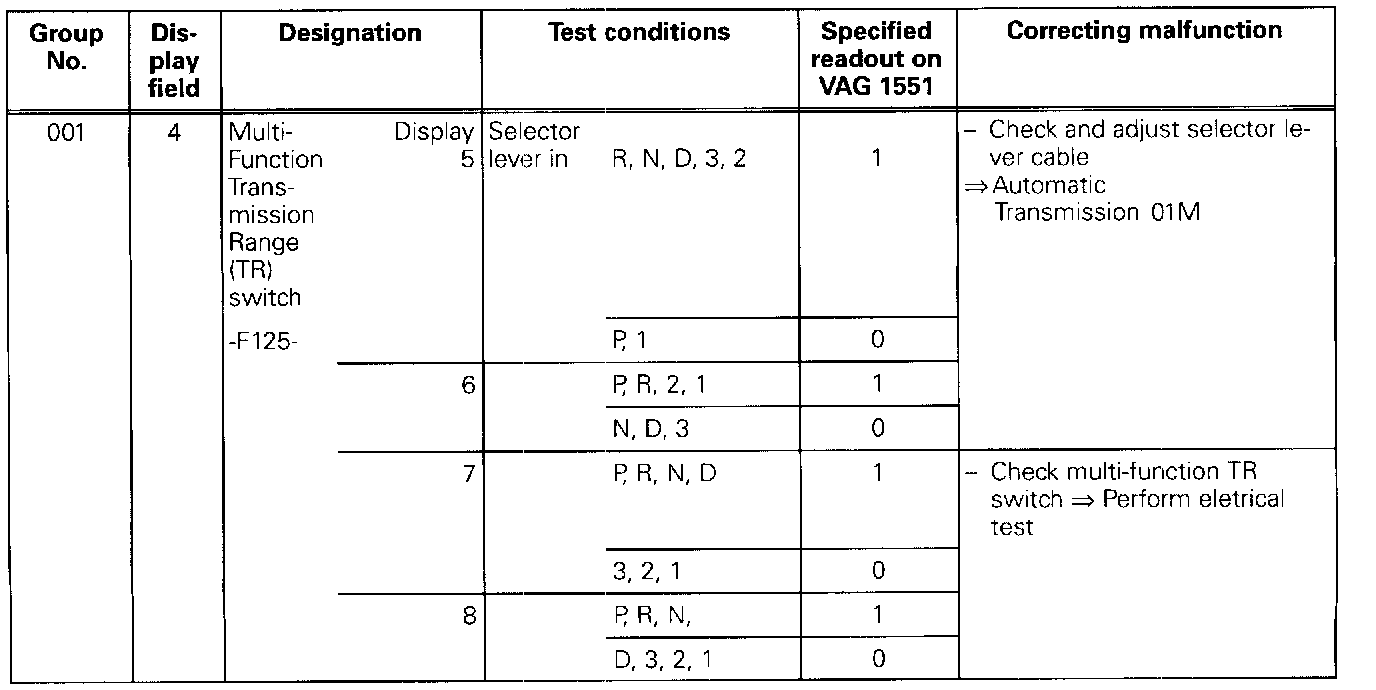

Display Field 4 (continued)

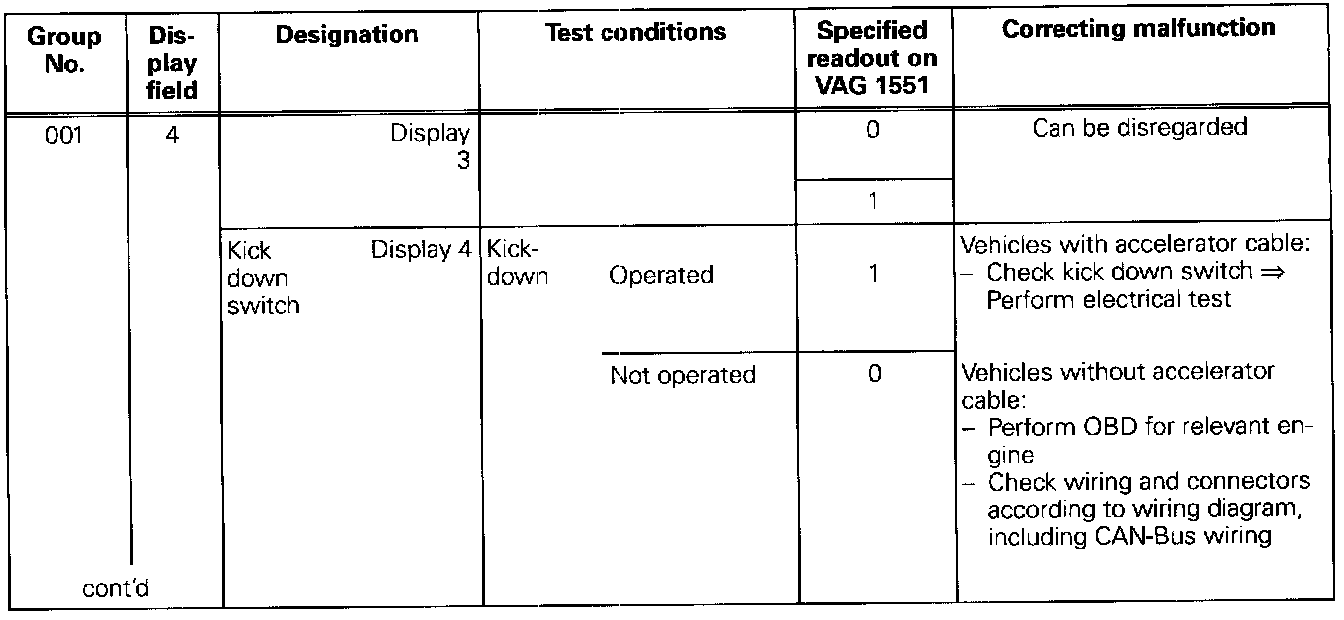

Display Field 4 (continued)
