Crankshaft, Engine

Crankshaft Main Bearing Bolts 65 Nm + 90° (1/4 turn) further
Replace

Axial clearance
new: 0.07...0 23 mm
Wear limit: 0.30 mm
Check radial clearance with Plastigage
new: 0.01...0.04 mm
Wear limit: 0.07 mm
Do not rotate crankshaft when checking radial clearance

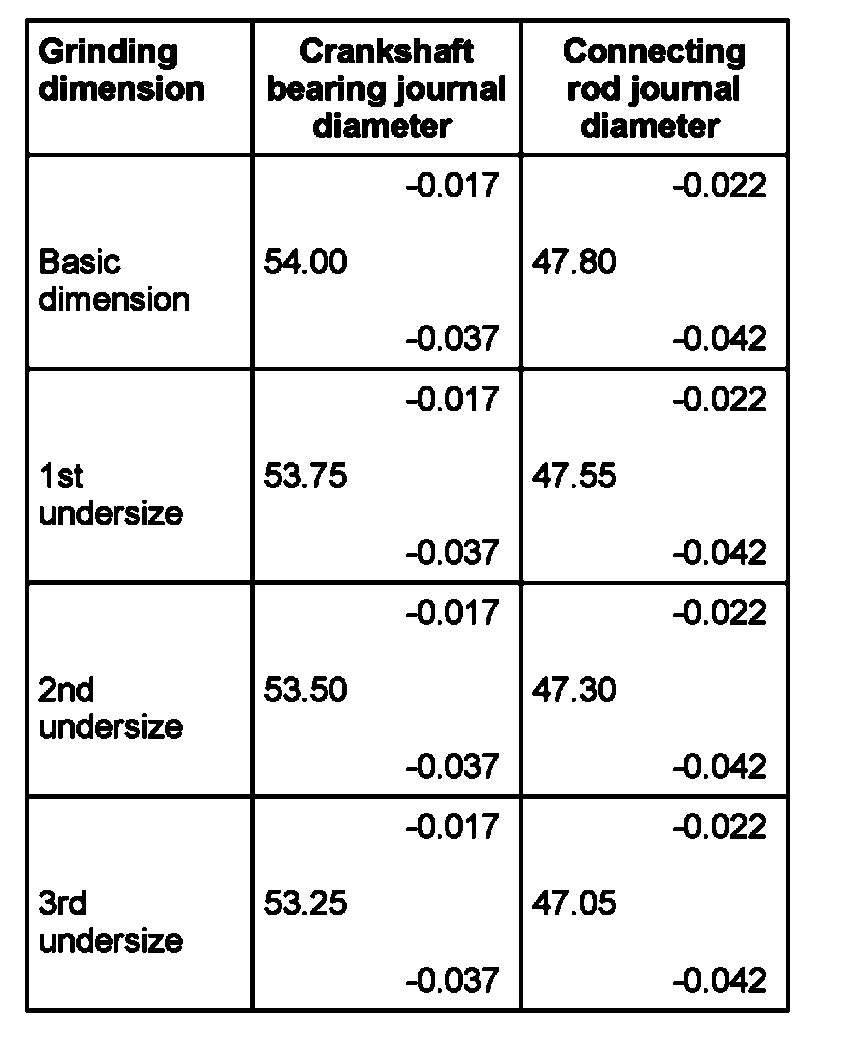

Crankshaft dimensions
(dimensions in mm)
