Radiator Cooling Fan Temperature Sensor / Switch: Locations

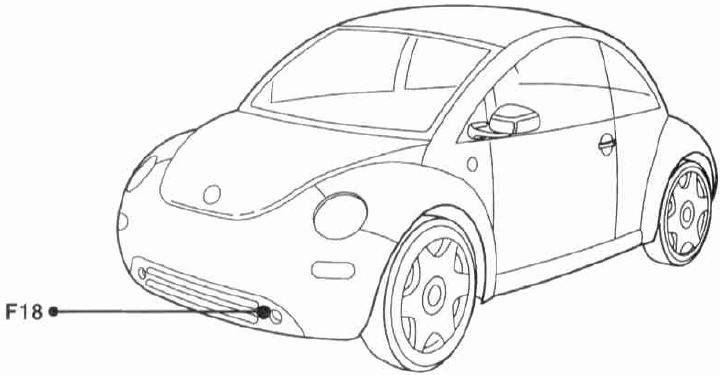

F18:






F18:

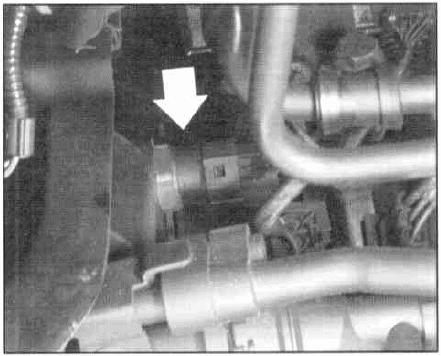

Component View

F18 Coolant Fan Control (FC) Thermal Switch
^ On rear of radiator, bottom left
