Fuel Supply System Components, Removing and Installing

Fuel Supply System Components, Removing And Installing

NOTE:
- Hose connections are secured with screw-type clamps, spring-type clamps or tensioning clamps.
- Always replace tensioning clamps with spring-type clamps or screw-type clamps.
- Fuel hoses at engine must only be secured with spring-type clamps. The use of clamping collars or screw clamps is not permitted.

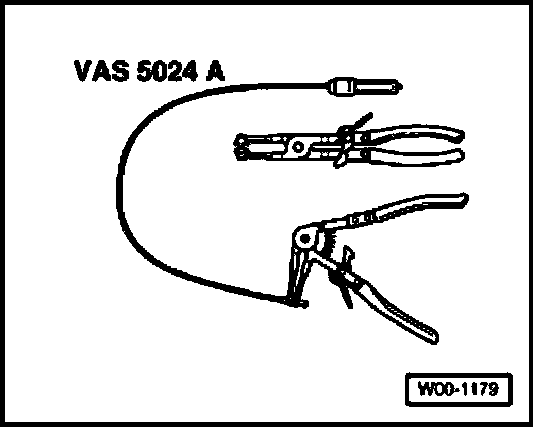

- VAS5024A spring clip installation tool is recommended for installing spring-type clips.

- Observe safety precautions. Safety Precautions When Working on Fuel Supply System
- Observe rules for cleanliness. [1][2]Technician Safety Information

Fuel tank with attachments and fuel filter, removing and installing:
- Vehicles with engine code AEG, AVH, AZG.
- Vehicles with engine code BDC.
- EVAP canister system.

Vehicles with engine code AVH, AZG, BDC
- Electronic engine power control (E-Gas).
