Ground Strap For Replacement Fuel Tanks, Installing

Ground strap for replacement fuel tanks, installing
Condition
All replacement fuel tanks do not come with Ground strap (wire) installed.

Installing

Note: The Ground strap must be installed into all replacement fuel tanks

CAUTION: Part numbers are for reference only. Always check with your Parts Dept. for the latest parts information.

Install Ground strap Part No. 1J0 201184 into replacement fuel tank as follows:
^ Remove fuel filler cap and observe cautions printed on cap.

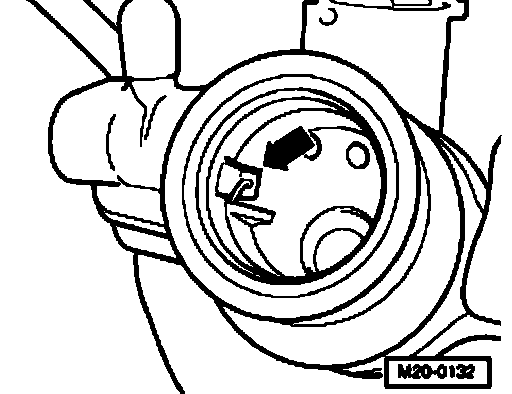

^ Bend up tab on inside of fuel filler pipe as shown (arrow).

Note: Illustration shows Ground strap already installed
.

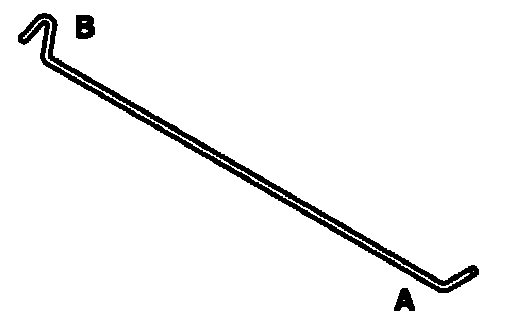

^ Insert end -A- of Ground strap through slot in tab up to bend -B- at other end of strap.
^ Bend down tab on inside of fuel filler pipe. This will secure strap to end of tab.
^ Reinstall fuel filler cap.
