Fuel Supply System, General Information

Fuel supply system, general information

Note:
^ Hose connections are secured with either spring-type or clamp-type clips.
^ Always replace clamp-type clips with spring type clips.
^ Fuel hoses of engine must only be secured with spring type clips. The use of clamp or screw type clips is not permitted.

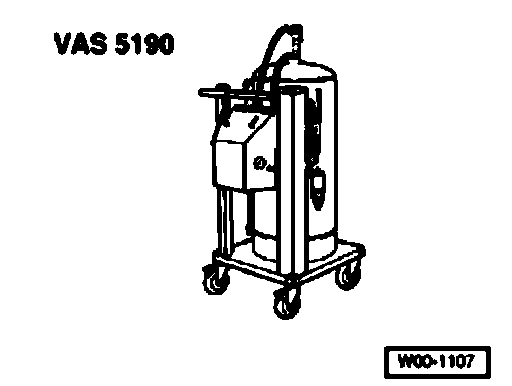

^ Fuel extraction unit VAS5190 is recommended to empty fuel tank.

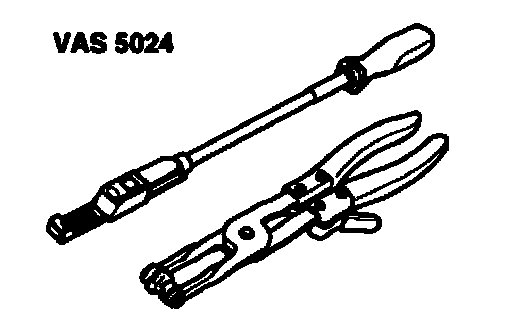

^ Always replace clamp-type clips with spring-type clips. Assembly tool VAS5024 or hose clip pliers VAG1921 are recommended for installing spring-type clips.

Removing and installing fuel tank with attachments and fuel filter.
Observe safety precautions.
Observe rules for cleanliness.
Servicing accelerator mechanism

Models without EPC
Adjusting accelerator cable.

Vehicles with Electronic Power Control (EPC)
Checking electronic accelerator (EPC)

Continuation for all models
Observe crash fuel shut-off.
Servicing parts of the Evaporative Emissions (EVAP) system.
