Parts of EVAP Canister System, Removing and Installing

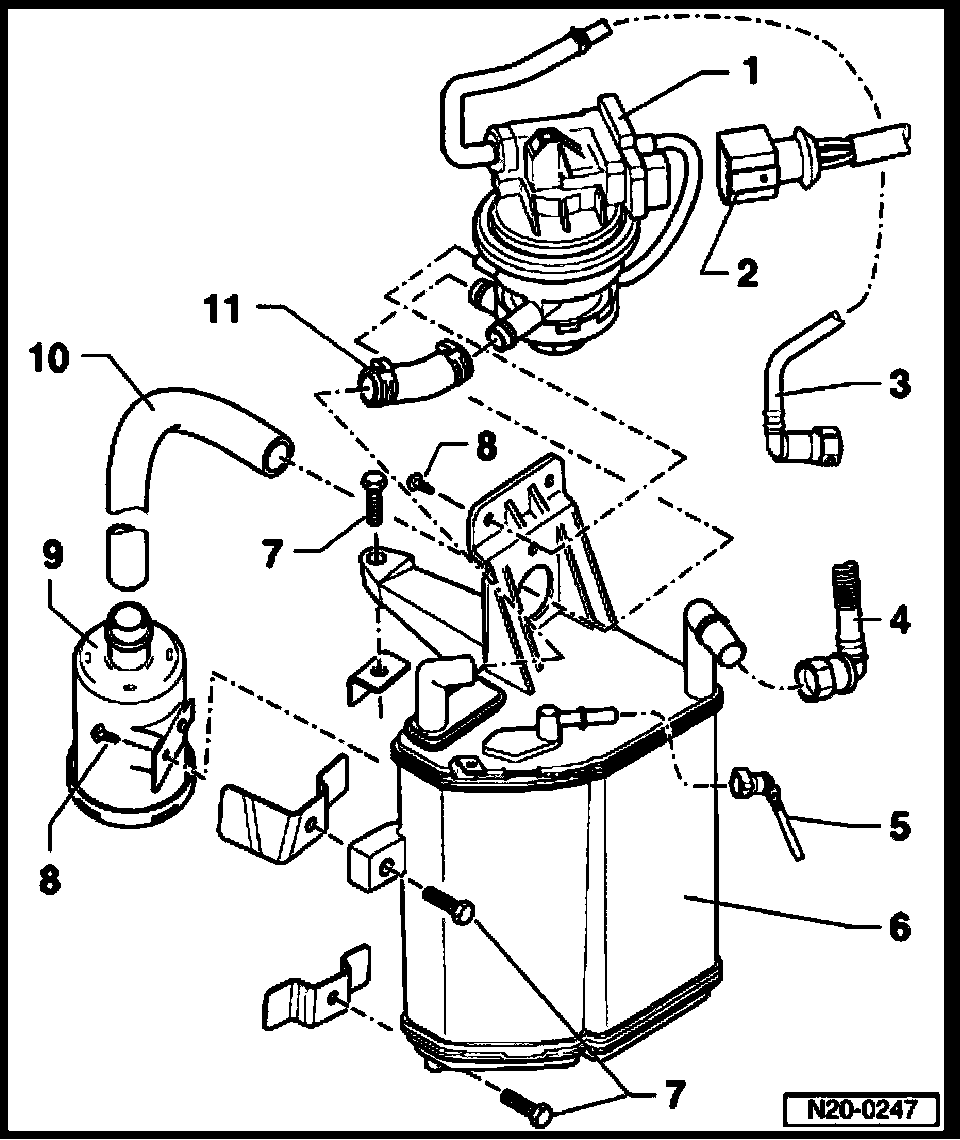

Parts Of EVAP Canister System, Removing And Installing







1 Leak Detection Pump (LDP) -V144-*
- Under wheel housing liner in rear right wheel housing
2 Connector
- black, 3-pin
3 Vacuum line
- Check for secure fitting
- to disengage, squeeze together at front
Vehicles with engine code AEG, AVH, AZG
- to upper part of intake manifold, item 1
Vehicles with engine code BDC
- to upper part of intake manifold, item 8
4 Vent line
- Check for secure fitting
- To disengage, squeeze together at front
Vehicles with engine code AEG, AVH, AZG
- from change-over valve, item 9
Vehicles with engine code BDC
- from change-over valve, item 11
5 Vent line
- Check for secure fitting
- To disengage, squeeze together at front
Vehicles with engine code AEG, AVH, AZG
- from pressure retaining valve, item 10
- from pressure retaining valve, item 7
6 EVAP canister
- Under wheel housing liner in rear right wheel housing
7 10 Nm
8 3 Nm
9 Air filter for diagnostic pump
10 Connection hose
- Intake side
- Check for secure fitting
11 Connection hose
- Pressure side
- Check for secure fitting
