Muffler With Mountings

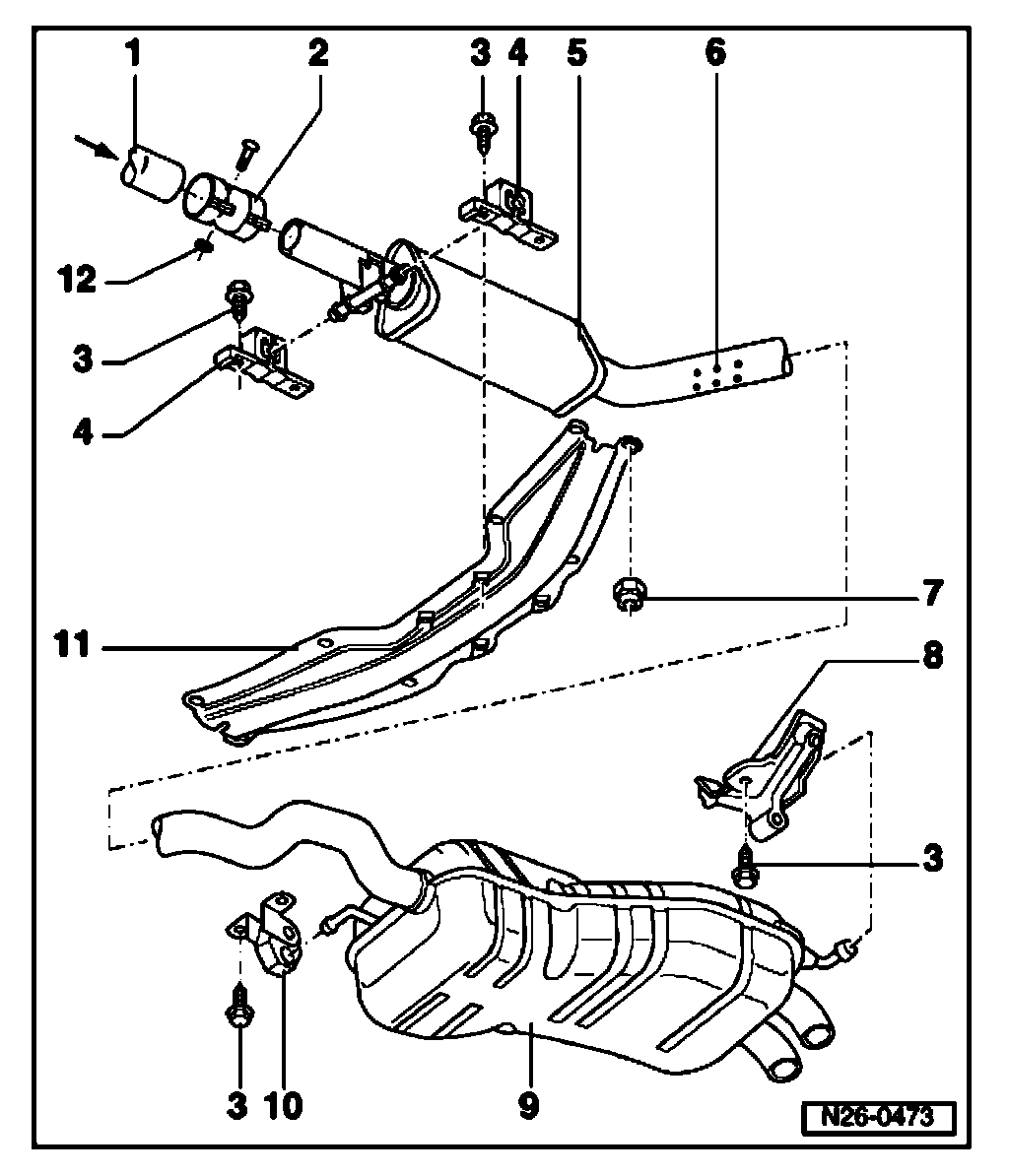

Muffler with mountings





1. From catalytic converter
2. Double clamp
^ Observe installing position
3. 25 Nm
4. Hangers/mountings
^ Observe installed position
5. Forward muffler
^ Aligning; Refer to Fig 4
6. Separating point
^ For repair cases
^ As standard, front and rear mufflers are installed as a single component. In repair cases front and rear mufflers are supplied individually with a double clamp for connecting together.
^ Cut through connecting pipe with body saw e.g. VAG1523 at right angles at separating point
7. 20 Nm
8. Hangers/mountings
9. Rear muffler
10. Hangers/mountings
^ With retaining ring
11. Tunnel bridge
12. 40 Nm

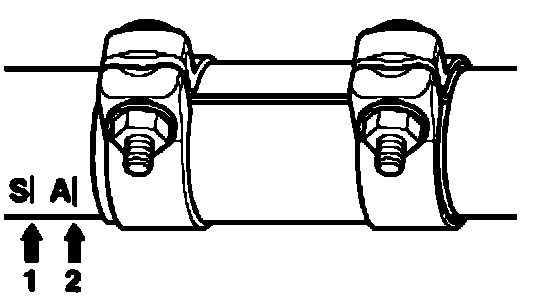

Fig. 1 Installed position of double clamp

Work sequence
^ Position double clamp approximately 5 mm away from mark "A" (arrow -2-).

Note:
^ Mark "A" (arrow -I is valid for models with either a manual or an automatic transmission.
^ Mark "S" (arrow -I is not valid for the engine codes in this manual.

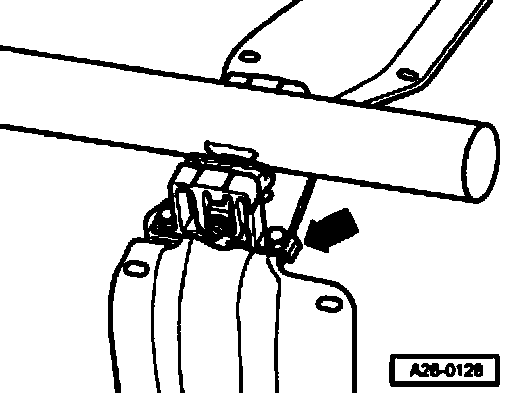

Fig. 2 Installed position of mounting
Angled side on base of mounting (arrow) points forward.

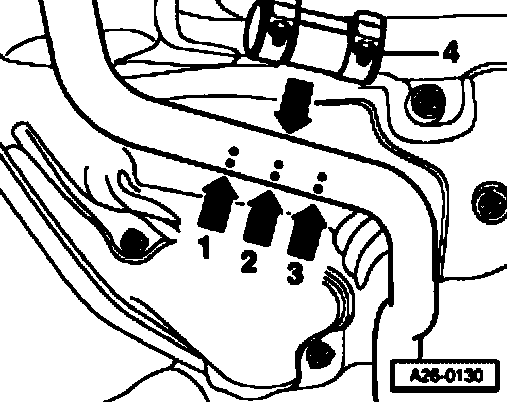

Fig. 3 Separating point on exhaust pipe

Special tools, equipment, testers, measuring instruments and auxiliary items required
^ Body saw e.g. VAG1523

Work sequence
^ Separate exhaust pipe at right angles at separating point (arrow -2-).
^ When installing, position repair double clamp -4- at side markings (arrows -1- and -3-). Tighten torque: 40 Nm

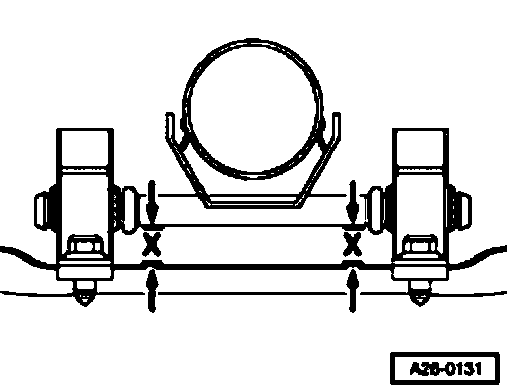

Fig. 4 Aligning center muffler stress free
The mounting pins on the exhaust pipe must run parallel with the tunnel bridge (dimension -x- on left and right is the same).
