Engine Lubrication: Service and Repair
Lubrication system components, removing and installing
Note:
^ Metal shavings or large amounts of small metal particles found in the engine oil during repairs may be caused by a partial seizure of the crankshaft or connecting rod bearings. Perform the following work sequences in this situation to prevent consequential damage once repairs are complete:
- Thoroughly clean oil passages
- Replace oil spray jets
- Replace oil cooler
- Replace oil filter
^ The oil level must not be above the max. mark or there is a danger of damage to catalytic converter.
Disassembling and assembling oil filter bracket; Refer to Oil Filter, Service and Repair.
Engine codes BDC, BGD
Disassembling and assembling oil pump with balancer shaft gear assembly; Refer to Oil Pump, Service and Repair
Removing and installing oil pump with balancer shaft gear assembly; Refer to Oil Pump, Service and Repair
Continuation for all models
Checking oil pressure and oil pressure switch; Refer to Oil Pressure, Testing and Inspection
Engine oil specifications
Use engine oils which conform with VW standard 500 00, 501 01 or 502 00. Only in exceptional cases: Multi-grade and single grade oils conforming with API-SF and SO or ACEA A2lA3.
Note:
^ In the factory the engine is filled with engine oil conforming with VW standard 503 00. This engine oil is designed for long service intervals (ESI).
^ Engine oils conforming to VW standard 500 00, 501 01 or 502 00 may also be used.
Oil system capacity
Refer to Additional Information Quick Reference Fluid Capacity Charts
Part I
Part II, Disassembling and assembling oil filter housing; Refer to Oil Filter Housing, Service and Repair

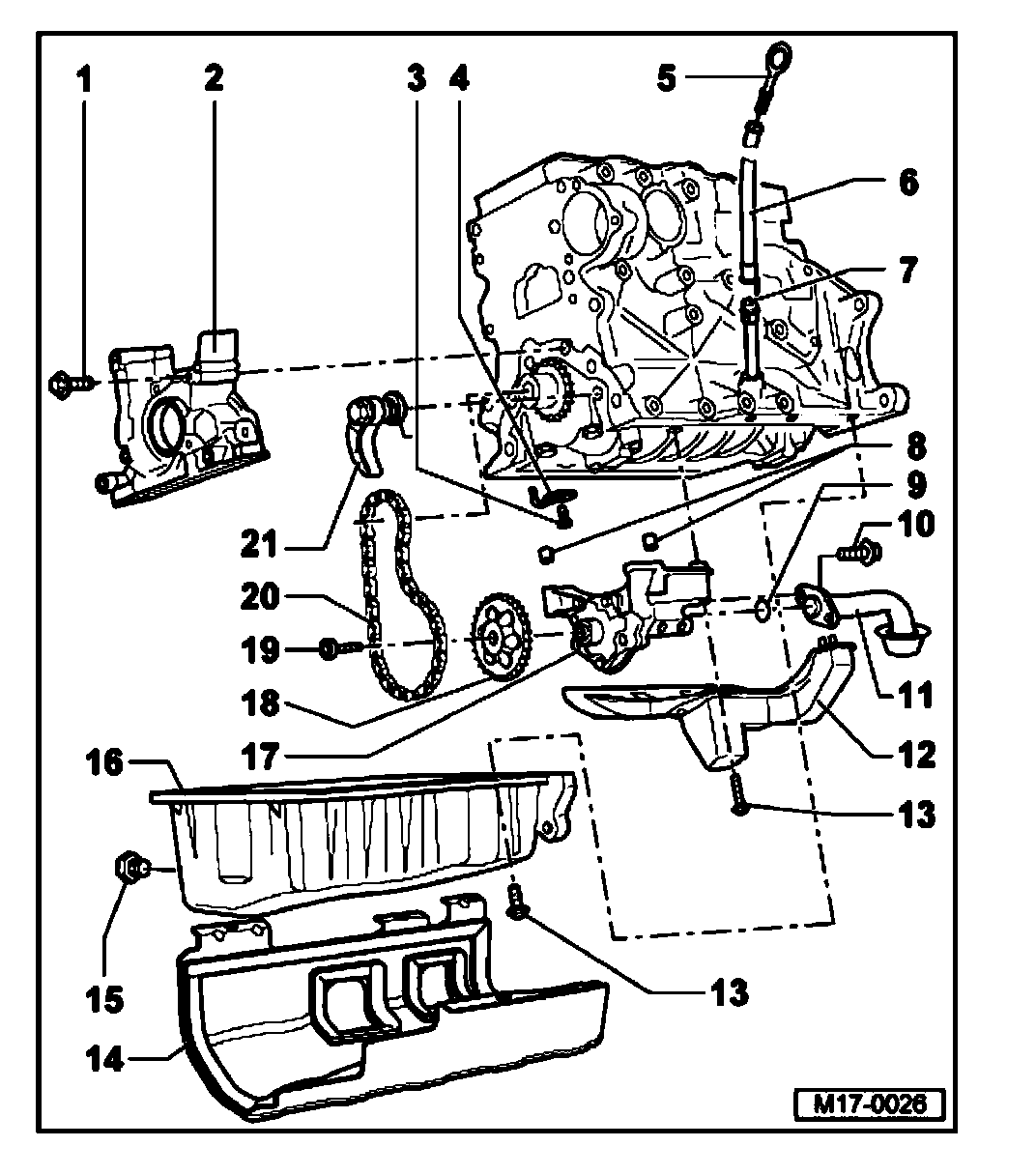

Engine codes AEG, AVH, AZG
1. 15 Nm
2. Sealing flange
3. Pressure relief valve, 27 Nm
4. Oil spray jet
^ For piston cooling
5. Dipstick
^ Oil level must not exceed max mark!
^ Markings
6. Dipstick guide
^ Fastened to intake manifold
^ Pull off to extract oil
7. Guide tube
8. Dowel sleeves
9. O-ring
^ Replace
10. 15 Nm
11. Suction line
^ Observe part number
^ Clean strainer if soiled
12. Baffle plate
13. 15 Nm
14. Oil sump protection
^ Not for all engines
^ Parts catalog
^ Assembly overview
15. Oil drain plug, 30 Nm
16. Oil sump
17. Oil pump
^ With pressure relief valve of 12 bar
18. Chain sprocket
^ Observe installing position
19. 20 Nm
^ Use counter support T10051 to loosen and tighten
20. Chain
21. Chain tensioner with tensioning rail, 15 Nm
^ When installing, pretension spring and fit
Part I

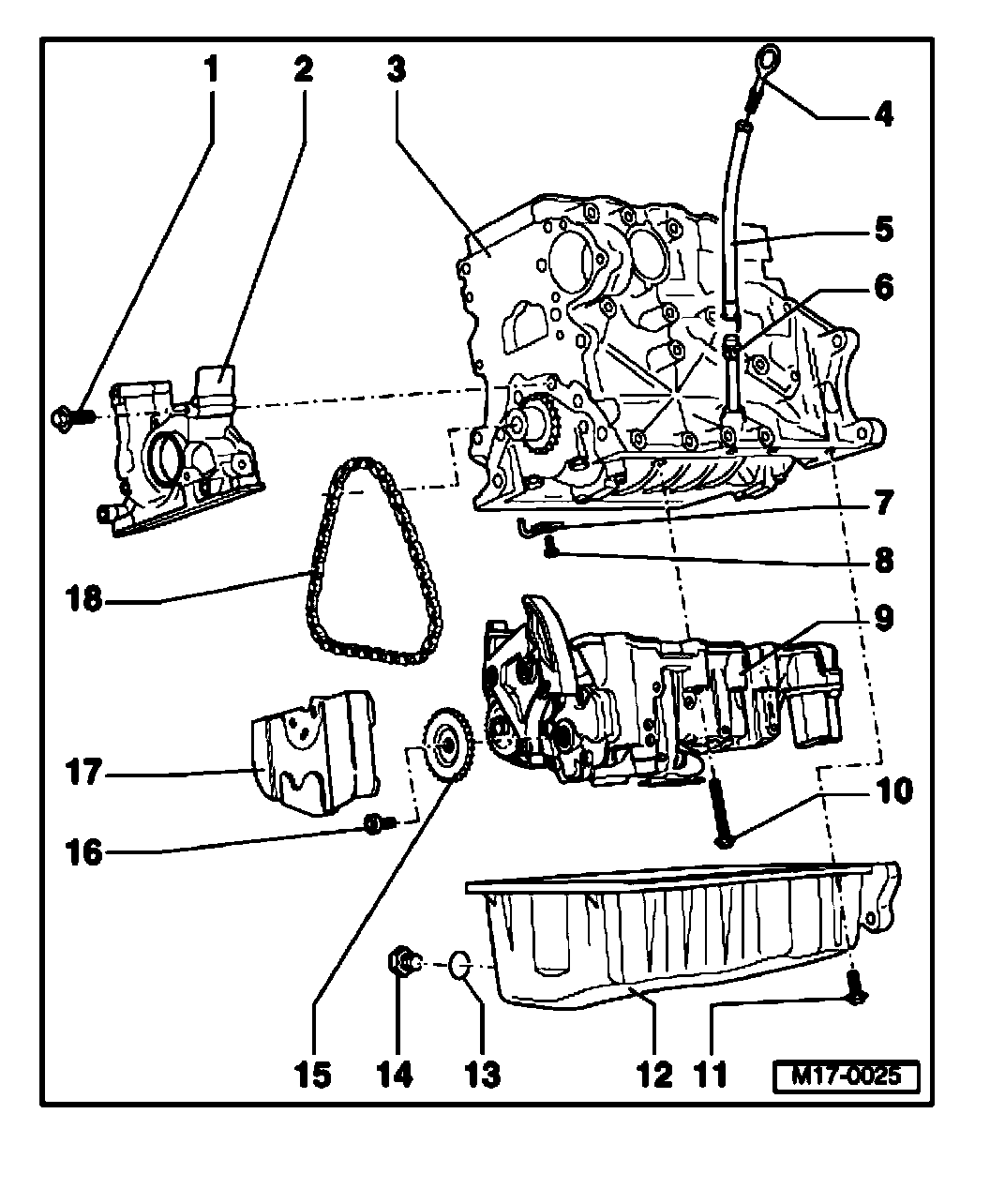

Engine codes BDC, BGD
1. 15 Nm
2. Sealing flange
3. Cylinder block
4. Dipstick
^ Oil level must not exceed max mark!
^ Markings; Refer to Fig 2
5. Dipstick guide
^ Fastened to intake manifold
^ Pull off to extract oil
6. Guide tube
7. Oil spray jet
^ For piston cooling
8. Pressure relief valve, 27 Nm
9. Oil pump with balancer shaft gear assembly
^ With pressure relief valve of 12 bar
10. 15 Nm, 1/4 turn (90°) further
11. 15 Nm
12. Sump
13. Seal
^ Replace
^ Cut open seals which have been rolled on
14. Oil drain plug, 30 Nm
15. Chain sprocket
^ Observe installed position
16. 20 Nm
17. Chain guard
18. Chain
Part I

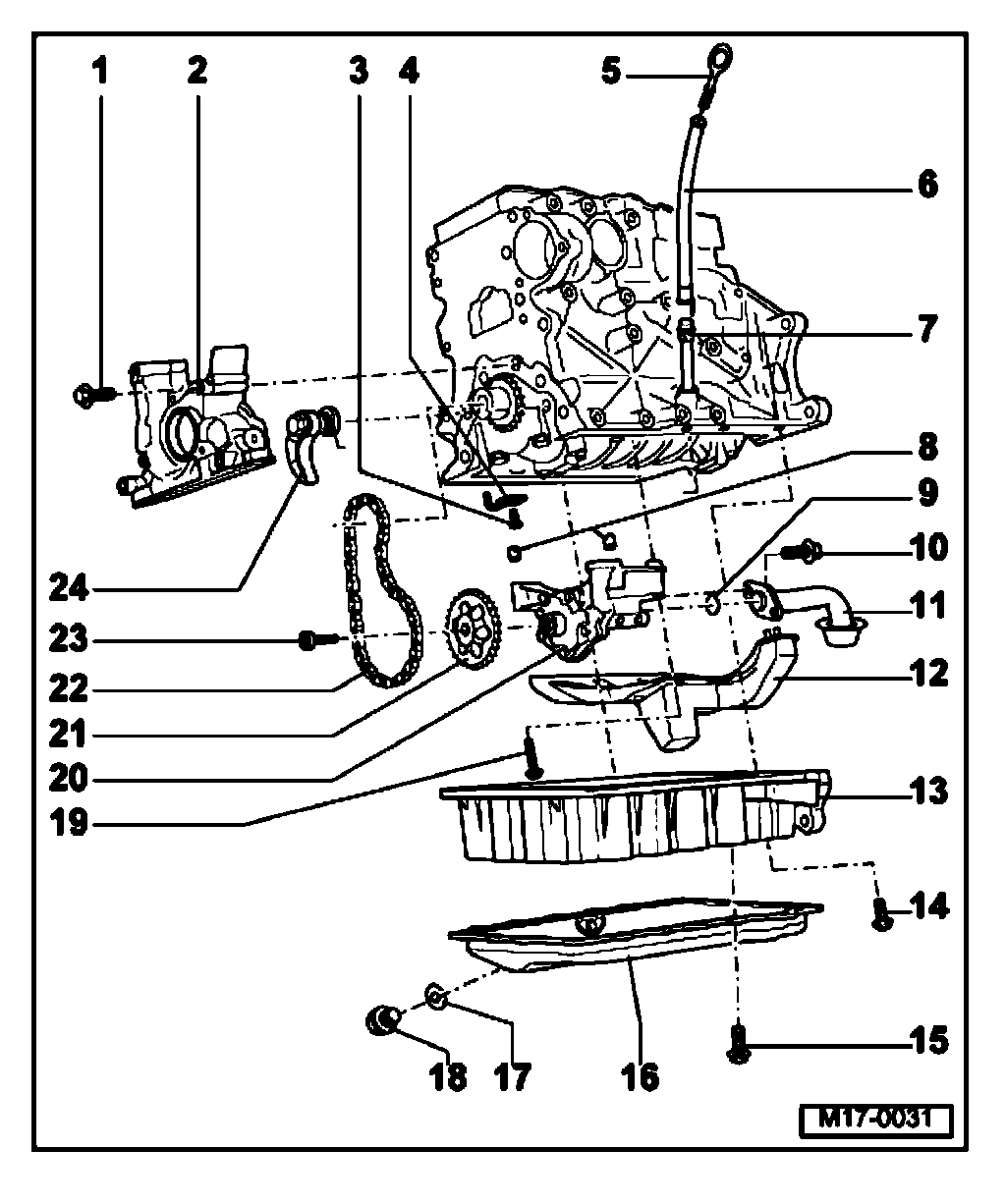

Engine code BEV
1. 15 Nm
2. Sealing flange
3. Pressure relief valve, 27 Nm
4. Oil spray jet
^ For piston cooling
5. Dipstick
^ Oil level must not exceed max mark!
^ Markings; Refer to Fig 1.
6. Dipstick guide
^ Fastened to intake manifold
^ Pull off to extract oil
7. Guide tube
8. Dowel sleeves
9. O-ring
^ Replace
10. 15 Nm
11. Suction line
^ Observe part number
^ Clean strainer if soiled
12. Baffle plate
13. Oil sump upper part
14. 15 Nm
15. 22 Nm
16. Oil sump lower part protection
17. Sealing ring
^ Replace
18. Oil drain plug, 30 Nm
^ Replace if leaking; Refer to Parts Supplier for correct application. In some cases seal and drain plug are combined; do not interchange with separate seal and drain plug.
19. 10 Nm
20. Oil pump
^ With pressure relief valve of 12 bar
21. Chain sprocket
^ Observe installing position
22. Chain
23. 20 Nm
^ Use counter support T10051 to loosen and tighten
24. Chain tensioner with tensioning rail, 15 Nm
^ When installing, pretension spring and fit
Engine codes AEG, AVH, AZG, BEV

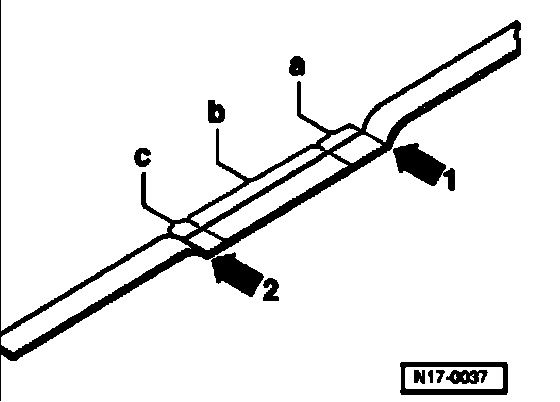

Fig. 1 Dipstick marks
1. max. mark
2. min. mark
a. Area above hatched field up to max. mark: Do not add engine oil!
b. Oil level within hatched field: Engine oil may be added
c. Area from min. mark up to hatched field: Add max. 0.5 Ltr. of engine oil!
Engine codes BDC, BGD

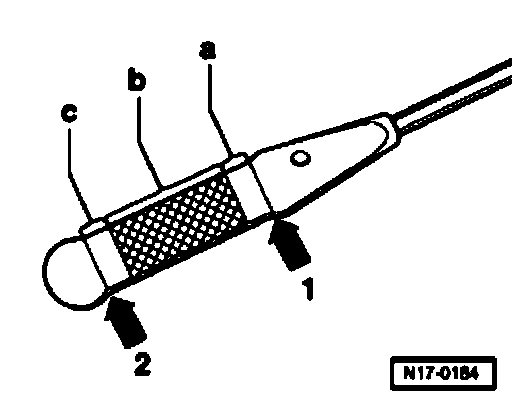

Fig. 2 Dipstick marks
1. max. mark
2. Min. mark
a. Area above hatched field up to max. mark: Do not add engine oil!
b. Oil level within hatched field: Engine oil may be added
c. Area from min. mark up to hatched field: Add max. 0.5 Ltr. of engine oil!
Engine codes BDC, BGD

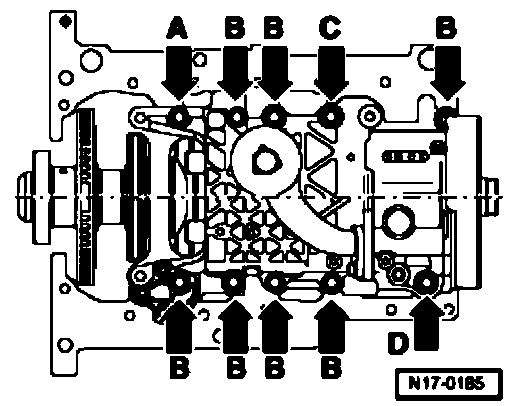

Fig. 3 Bolt allocation for balancer shaft gear assembly
A. M7 x 40 hex bolt
B. M7x55hex bolt
C. M7 x 90 hex bolt
D. Sealing plug with O-ring

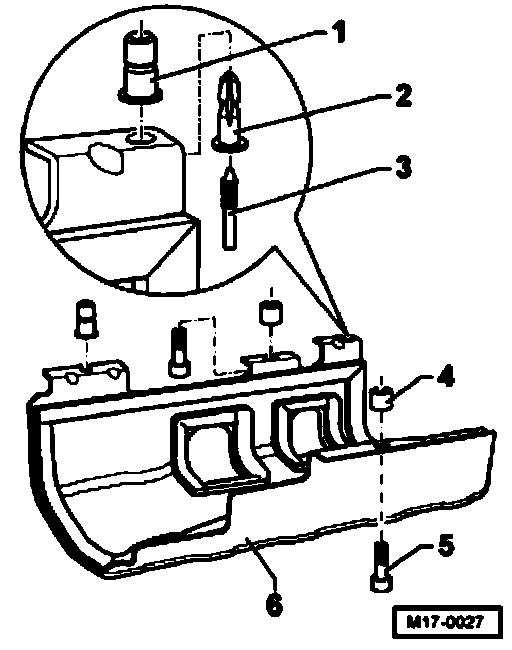

Fig. 4 Oil sump protection -Assembly overview
1. Rubber grommet
^ located in cylinder block
2. Spreader rivet
3. Spreader rivet
^ to remove oil sump protection push upward
^ to install press in flush
4. Socket
5. Bolt, 37 Nm
^ secure in cylinder block
^ clean threads before installing
^ install with locking compound D 000 600 A2
6. Oil sump protection
