Home >> Volkswagen >> 2004 >> New Beetle Convertible (1Y1) L4-2.0L (BGD) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Master Diagram Index >> All Other Components/Systems

All Other Components/Systems

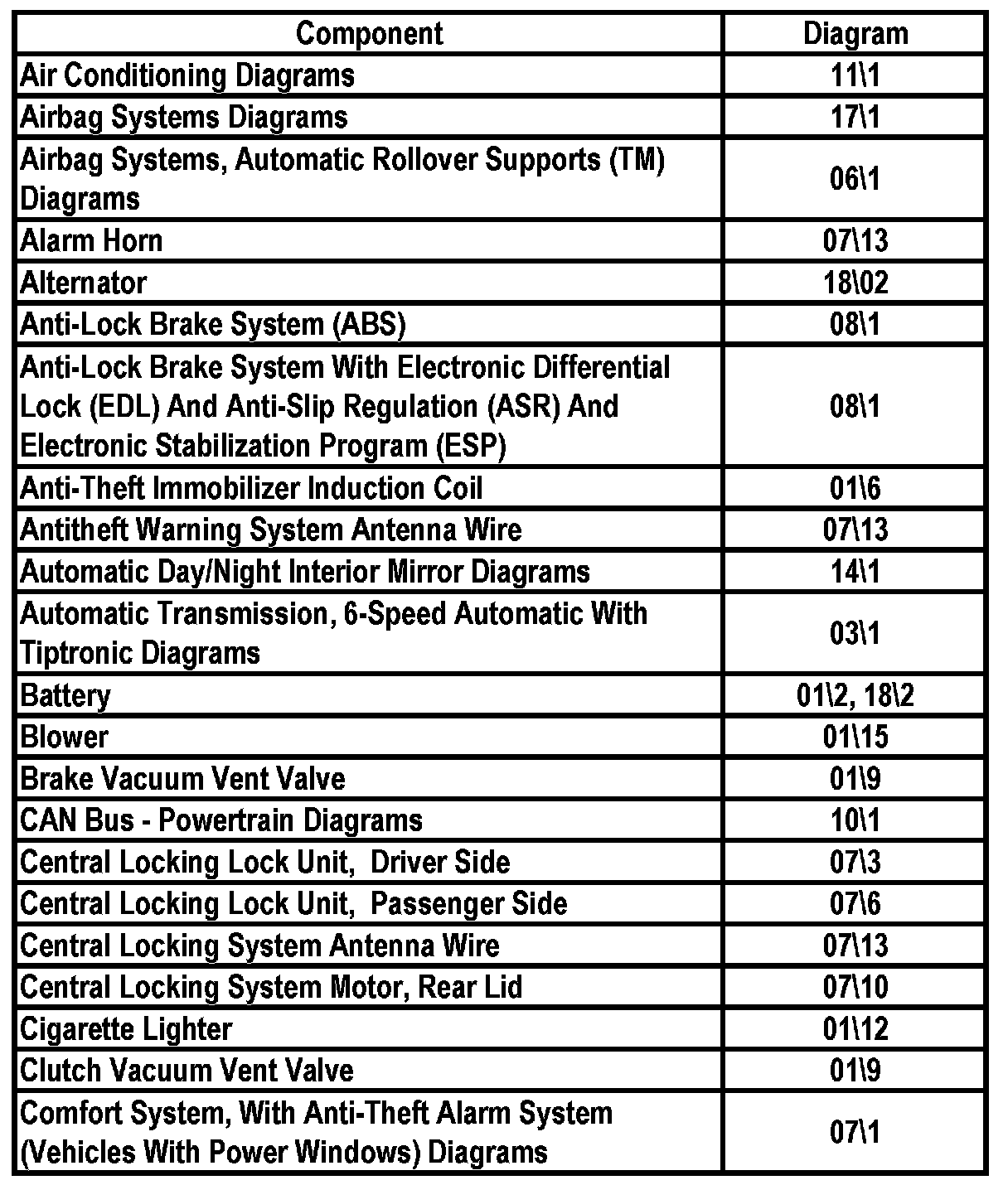

Ai - Co:

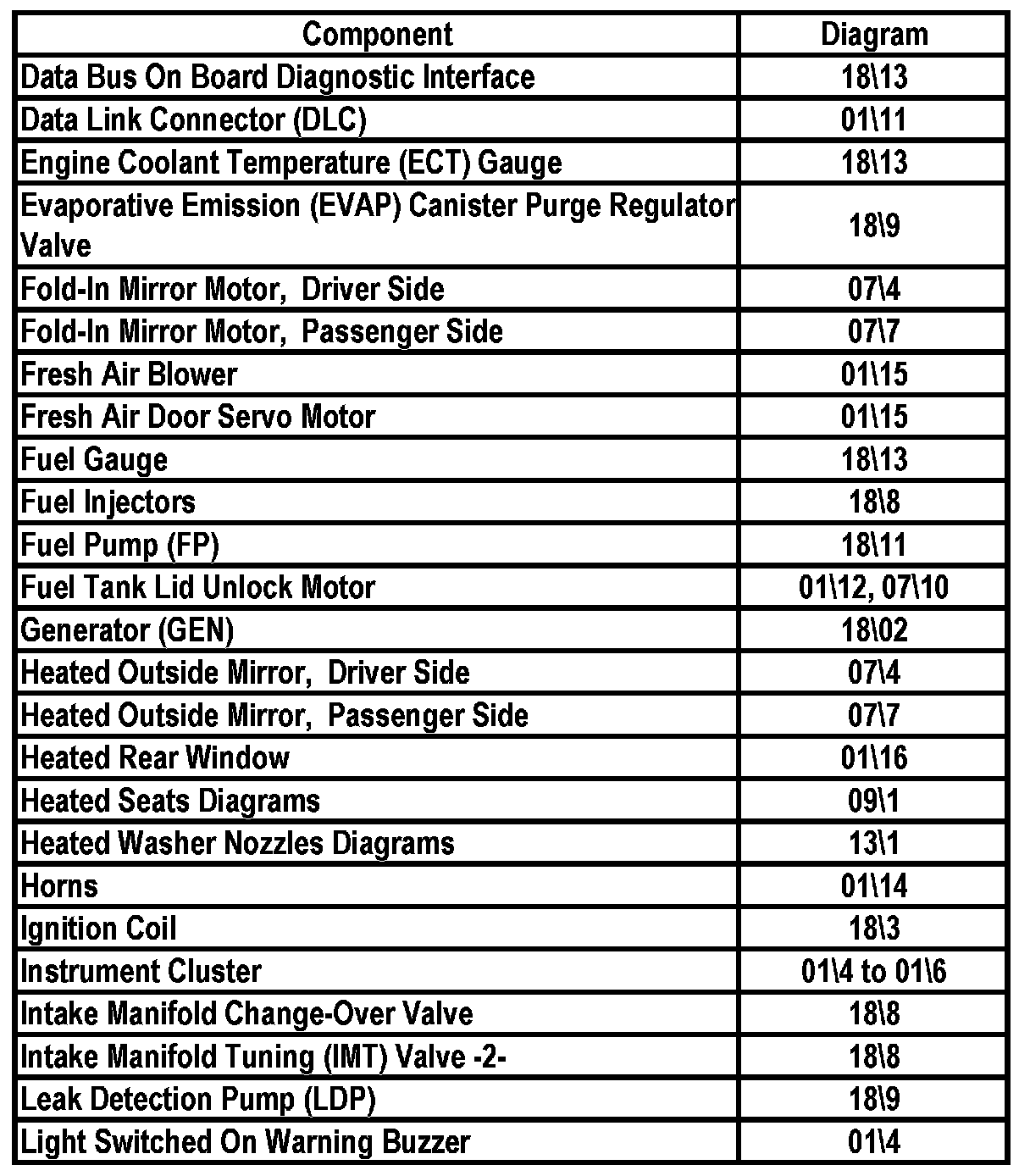

Da - Li:

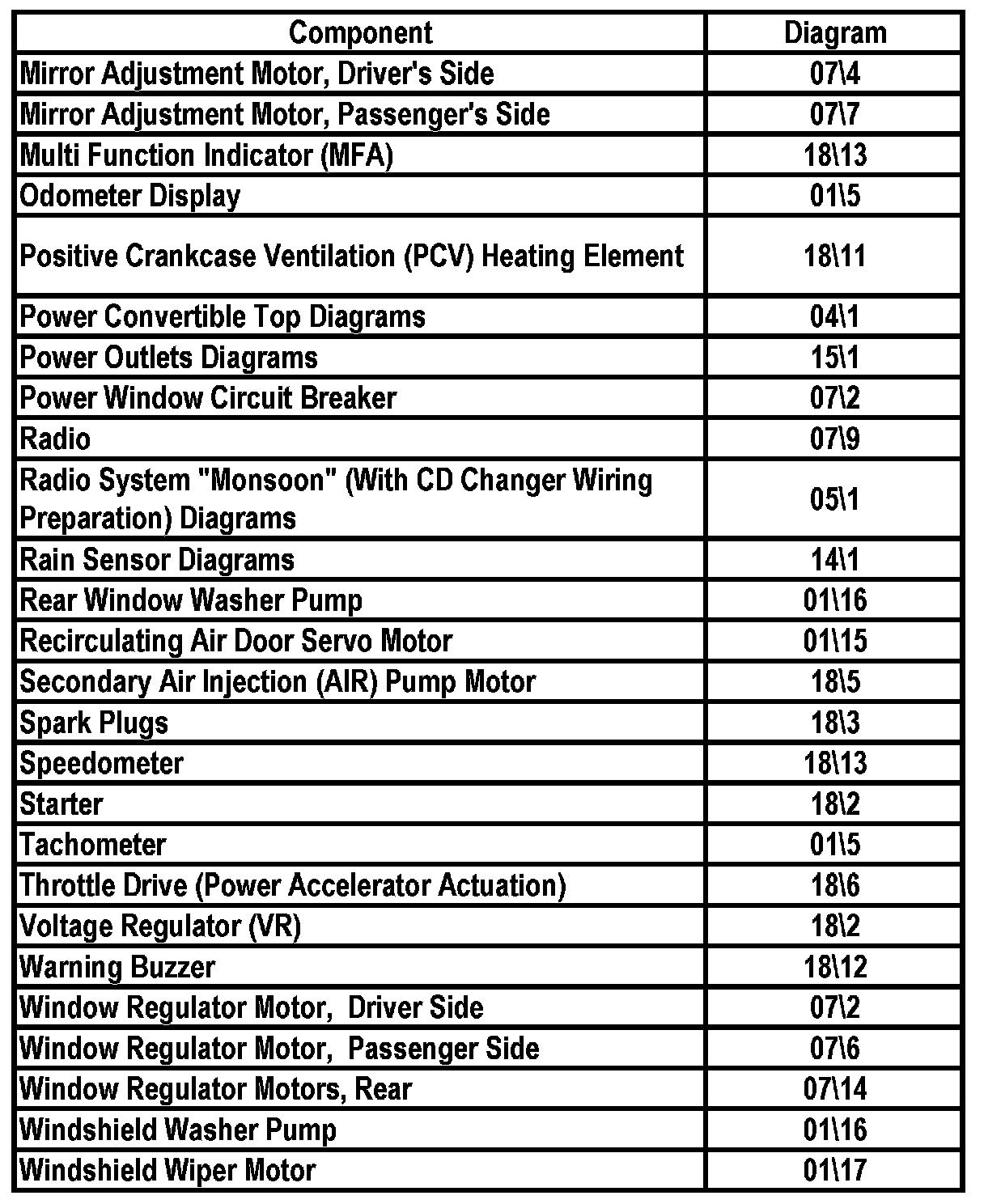

Mi - Wi:
