Manual Convertible Top, Assembly Overview
Manual Convertible Top, Assembly Overview
NOTE: Electric-/hydraulic convertible top.

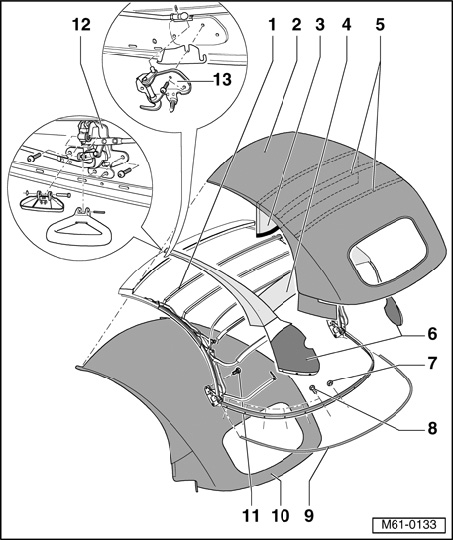

1 - Convertible top frame
2 - Convertible top cover
- Rear window is a component of convertible top cover
3 - Detail-pad convertible top cover
- Sewed on convertible top cover
4 - Padding
5 - Tightening belt
- Sewed on convertible top cover
6 - Rear upholstering pad
- Sewed on padding
7 - Nut
- 10 Nm
8 - Bolt
- 12x
- 10 Nm
9 - Sealing band
10 - Convertible top headliner
11 - Bolt
- 50 Nm
12 - Front convertible top latch
13 - Front retaining latch
