Oil Reservoir, Removing and Installing

Oil Reservoir, Removing And Installing

Removing
- Remove hydraulic pump.







NOTE: Before removing oil reservoir, place container under pump and catch escaping oil.

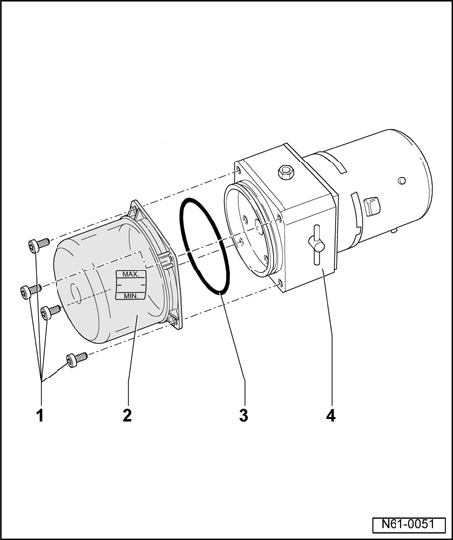

- To remove, loosen Torx bolts - 1 - and catch escaping oil while doing so.
- Remove Torx bolts - 1 - and carefully pull off oil reservoir.

Installing







- Coat O-ring - 3 -with hydraulic oil and insert into groove on pump housing.







- Coat oil reservoir - 2 - on inside in the area of O-ring with hydraulic oil.
- To install, slide on oil reservoir using turning motions and always tighten new Torx bolts - 1 - (2 Nm).

NOTE: Always observe torque, otherwise oil reservoir will be damaged.

- Install hydraulic pump.
- Hydraulic system, filling and bleeding.
