Rear Wind Deflector Bracket, Removing and Installing



Rear Wind Deflector Bracket, Removing And Installing

Removing
- Remove wind deflector.

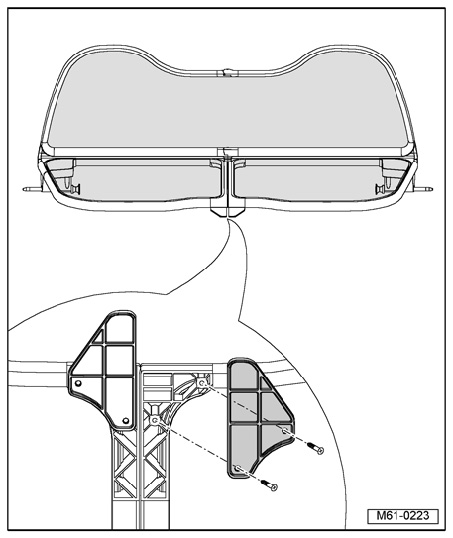

- Remove two bolts, respectively, and remove corresponding wind deflector bracket.







Installing
- Installation is performed in the reverse order of removal.
