Removal and Installation

Side Window, Convertible

=> [ Side Window ]

=> [ Retaining Plate ]

=> [ Window Regulator Motor ]

Side Window

Removing

- Open convertible top.

- Remove side trim.

- Remove loudspeaker.





- Remove outer window recess seal.

- Remove upper retaining plate.





- Raise door window until combination nuts of door window are visible in installation opening - arrow -.





- Remove combination nuts.

- Lower side window to center position until combination nuts are visible in installation opening - arrow -.





- Remove combination nuts.

- Tilt side window toward inside and remove upward from window recess.

Installing

- Installation is performed in the reverse order of removal.

• When installing, check side window adjustment.

Retaining Plate

• Retaining plate can also be removed with side window. To do so, upper adjuster must be bolted in completely.

• If side inclination (side distance) is not suitable, it can be corrected via adjuster at carrier plate.

• To do so, side window must be installed.

Removing

- Remove side window. Refer to => [ Side Window ].

- Disconnect harness connector for window regulator.

- Remove lower installation opening cap.

- Loosen combination nuts in installation openings - arrows -.





- Remove retaining plate upward via recess.

Installing

Installation is performed in the reverse order of removal.

• After installing, check side window adjustment.

Window Regulator Motor

Removing

- Remove carrier plate. Refer to => [ Retaining Plate ].

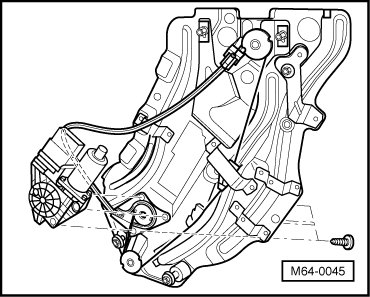

- Remove four bolts - 1 - from rear side.





- Carefully remove cable guide housing from motor.

• Cable tensioning roller must not loosen from window regulator.

- Remove motor.

Installing

Installation is performed in the reverse order of removal.
