Side Window, Convertible: Description and Operation
Side Window, Convertible
=> [ Side Window Assembly Overview ]
=> [ Side Window, Adjusting ]

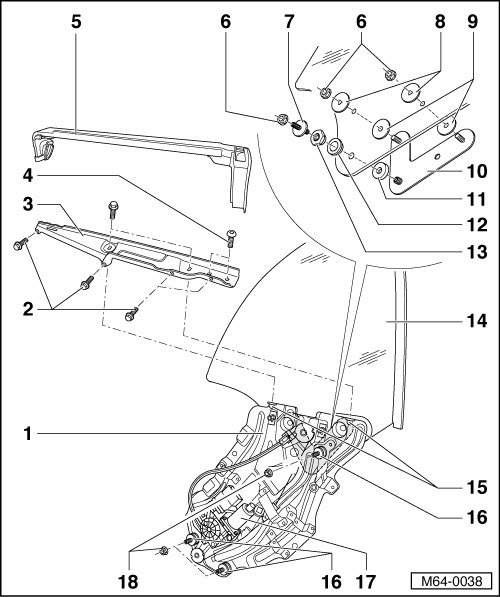

Side Window Assembly Overview
1 Carrier Plate With Window Regulator Motor
2 Hex bolt
• Qty 3
• 10 Nm
3 Door Window Retaining Plate
4 Torx Bolt
• Qty 3
• 10 Nm
5 Outer Window Recess Seal
• Inserted on flange
6 Combination Nut
• Qty 3
• 6 Nm
7 Adjuster
8 Washer
9 Spacing Disc
10 Side Window Bracket
11 Spacing Disc
12 Spacing Disc
13 Nut
14 Side Window
• Removing, refer to=> [ Side Window ] Side Window, Convertible
• Adjusting, refer to => [ Side Window, Adjusting ]
15 Clamping Nut
• Qty 2
16 Side Inclination Adjuster
17 Window Regulator Motor
• Removing and installing, refer to => [ Window Regulator Motor ] Side Window, Convertible
18 Combination Nut
• Qty 3
• 20 Nm
Side Window, Adjusting
• Side trim, loudspeaker removed and convertible top closed.
• Observe that flushness and joint between door window and side window is guaranteed.
• If side inclination (side distance) is not suitable, it can be corrected via adjuster at carrier plate.

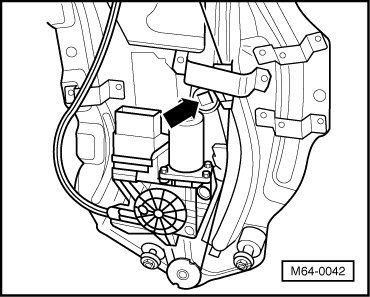

- Lower side window to center position until combination nut is visible in installation opening - arrow -.
- Loosen combination nut.

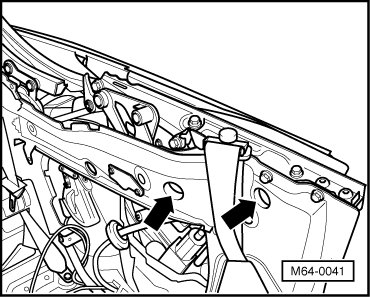

- Raise door window until combination nut is visible in installation opening - arrows -.
- Loosen combination nuts.
• Side window can now be moved forward and backward as well as up and down.

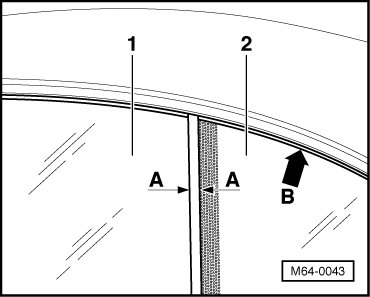

- Align side window - 2 - parallel with door window - 1 -. Dimension (- A -): 9 mm
- Press side window slightly into window guide - arrow B -.

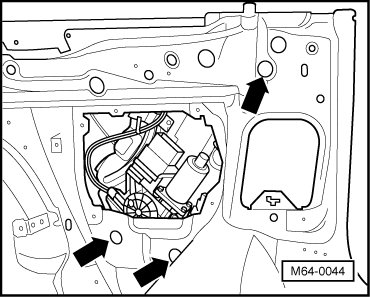

- Tighten combination nuts (6 Nm) through installation opening - arrows -.
- Lower side window to center position until combination nut is visible in installation opening - arrow -.
- Tighten combination nut.
Then perform function check.
Adjusting Side Inclination
• Side window must be installed.
- Remove outer window recess seal.

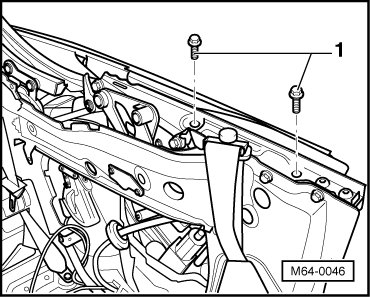

- Loosen bolts - 1 -.
- Loosen combination nuts in installation opening.
- Adjust distance and side inclination of side window using socket wrench at adjuster.
Then perform function check.
- Tighten combination nuts.
- Tighten retaining plate bolts.
- Install outer window recess seal.
