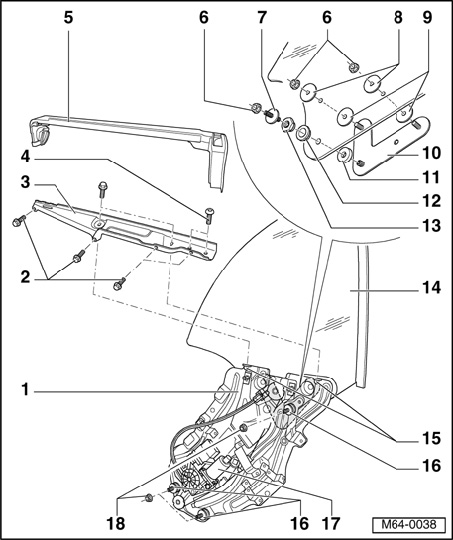

Side Windows, Assembly Overview, Convertible

Side Window, Assembly Overview, Convertible





1. Carrier plate with window regulator motor

2. Hex bolt
Qty3
10 Nm

3. Door window retaining plate

4. Torx bolt
Qty 3
10 Nm

5. Outer window recess seal
Inserted on flange

6. Combination nut
Qty 3
6 Nm

7. Adjuster
8. Washer
9. Spacing disc
10. Bracket for side window
11. Spacing disc
12. Spacing disc
13. Nut
14. Side window

15. Clamping nut
Qty 2

16. Adjuster for side inclination
17. Window regulator motor

18. Combination nut
Qty 3
20 Nm
