Flush-Bonded Windows

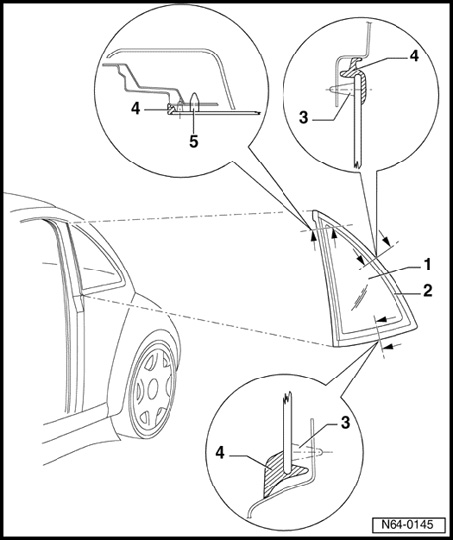

Side Windows, Assembly Overview







1 - Side window
2 - Ceramic coating
3 - PUR adhesive sealant
- Bead cross section: Width = 7 mm, height = 11 mm (including pre-coating, residual material on window glass and window flange)
- Minimum curing time

4 - Sealing lip (component part of pre-coating)
5 - Securing pin
- 2x
- Cut off before removing window
