Front Door Window, Removing

Front Door Window, Removing

- Remove front door trim

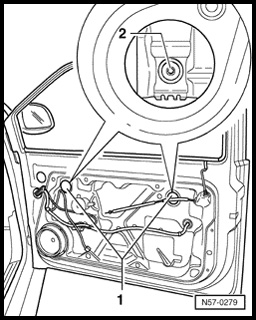

- Pry off caps - 1 -.
- Lower door window until securing bolts at clamping brackets are accessible.

NOTE: If work step is not possible due to malfunction of the electrical window regulator, window regulator motor can be removed to be able to slide window down.

- Loosen bolts - 2 - and press clamping brackets apart.
- Lower window regulator further.







- Raise rear door window and swing out of door toward front in - direction of arrow -.
