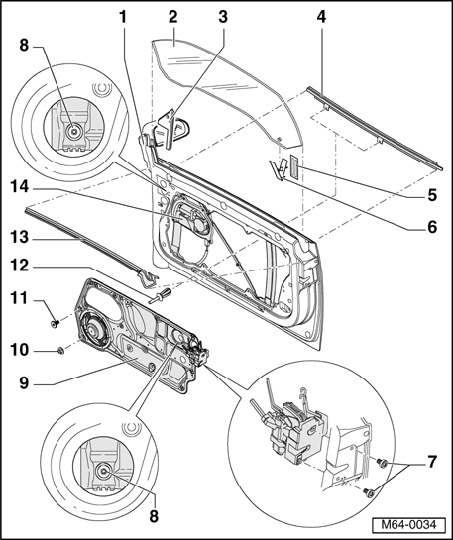

Front Door Window, Assembly Overview (Convertible)

Front Door Window, Assembly Overview (Convertible)







1 - Door
2 - Door window
3 - Window guide, front
- Inserted on flange

4 - Outer window recess seal
5 - Threaded plate
6 - Bracket
7 - Bolt
- 20 Nm

8 - Bolt
- 8 Nm

9 - Subframe
10 - Nut
11 - Bolt
- 9x
- 8 Nm

12 - Expanding rivet
13 - Inner window recess seal
- Inserted on flange

14 - Motor for window regulator
