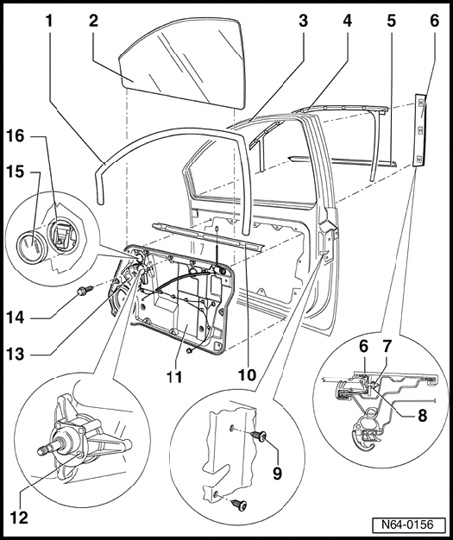

Front Door Window, Assembly Overview

Front Door Window, Assembly Overview







1 - Window guide
- Inserted on flange

2 - Door window
3 - Door
4 - Outer window guide
- Inserted on flange

5 - Window recess seal
- Inserted on flange

6 - Face plate
7 - Phillips-head screw
8 - Spring nut
9 - Bolt
- 20 Nm

10 - Window recess seal
- Inserted on flange

11 - Subframe
- Window regulator is a component of the subframe

12 - Crank mechanism for mechanical window regulator
- Bolted on to subframe from rear

13 - Motor for window regulator
- Bolted on to subframe from front

14 - Bolt
- 8 Nm

15 - Cover cap
16 - Bolt
- 10 Nm
