Rear Window, Assembly Overview

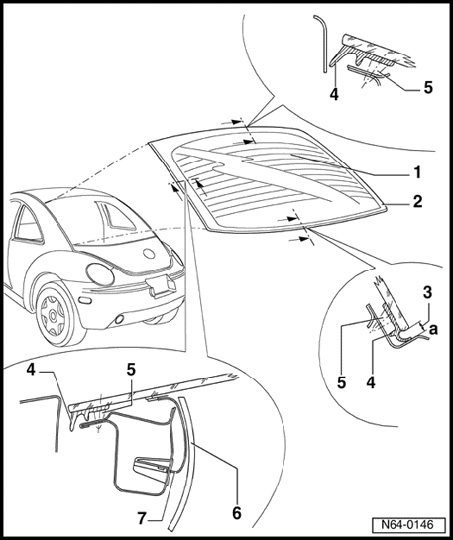

Rear Window, Assembly Overview







1 - Rear window
2 - Ceramic coating
3 - Dimension - a - = 4.5 mm
4 - Sealing lip (component part of pre-coating)
5 - PUR adhesive sealant
- Bead cross section: Width = 7 mm, height = 11 mm (including pre-coating, residual material on window glass and window flange)
- Minimum curing time

6 - Trim
7 - Contact for window heater
