Carrier Plate, Removing and Installing

Carrier Plate, Removing And Installing

NOTE:
- The carrier plate can also be removed with side window. The upper adjuster must screwed in completely for this.
- If the side inclination (distance) is not correct this can be corrected via the adjuster on the carrier plate.
- The side window must be installed for this.

Removing
- Remove side window.
- Disconnect electric window connection.
- Remove cap from lower assembly opening.

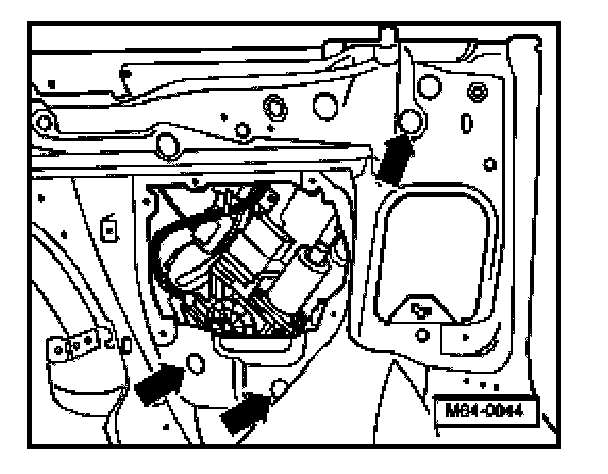

- Loosen combi-nuts in assembly opening -arrows-.
- Take carrier plate out upward through window slot.

Installing
Install in reverse order of removal.

NOTE: Check adjustment of side window after assembly.
