A/T - Fluid Leaking Between Case Halves

37 07 11

July 5, 2007

2015499

Condition

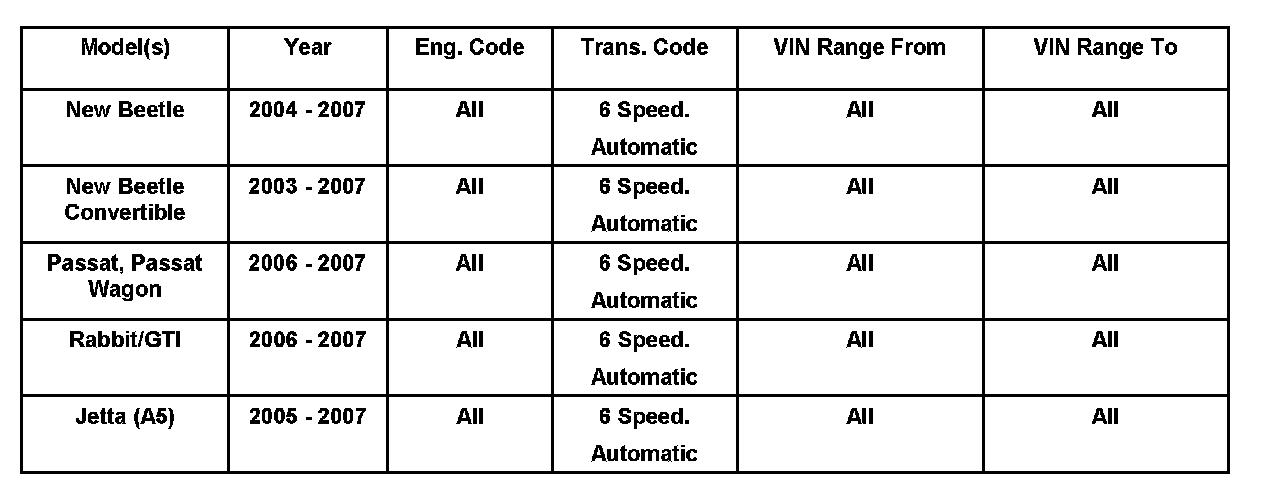

Vehicle Information

Transmission, Automatic Transmission Leaking Fluid

Technical Background

Transmission leaking automatic transmission fluid between case halves.

Production Solution

Implementation of starter area wash and clean process.

Service





^ Verify fluid leak at transmission case.

Note:
DO NOT replace the transmission pan gasket.

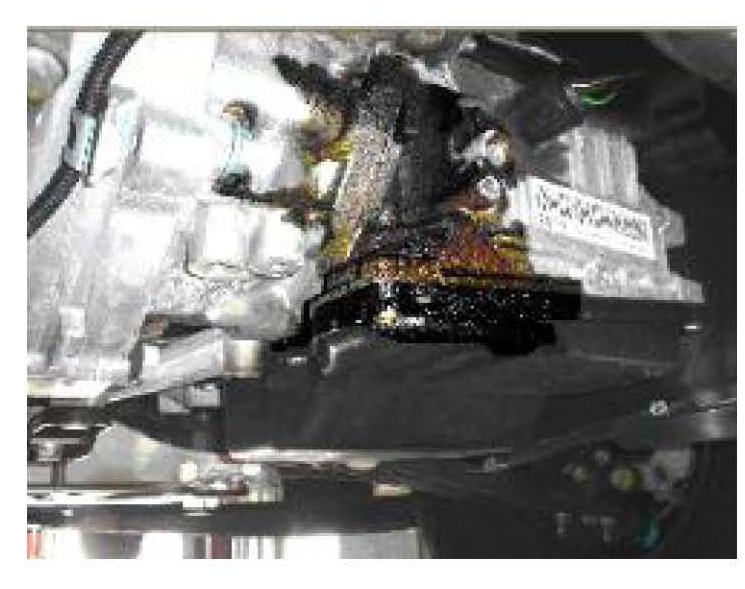

^ Photograph the transmission fluid leak.

Note:
Photo of transmission leak required for verification.

^ Contact technical assistance by selecting the "Technical Assistance" tab in ElsaWeb and follow the instructions to obtain a 6 digit pin.

Warranty

Information only.

Required Parts and Tools

No Special Parts required.

No Special Tools required.

Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal.

Always check with your Parts Dept. and Repair Manuals for the latest information.
