Tightening Specifications

Selector cable support bracket to transmission 25 Nm
Transmission selector lever to transmission 25 Nm
Hydraulic pipe to transmission 25 Nm
Oil filler plug 30 Nm
Flanged shaft to transmission (conical head bolt) 25 Nm

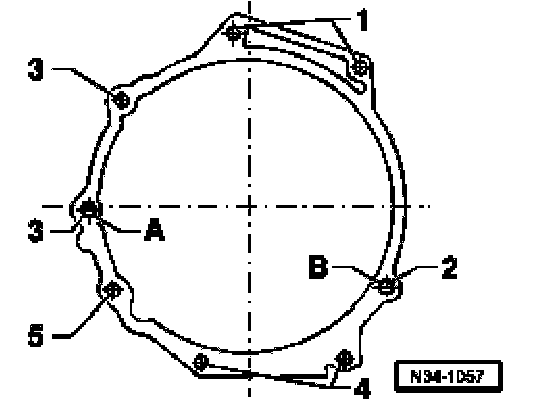

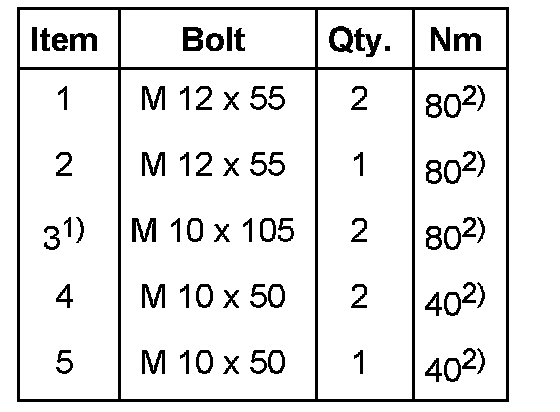

Transmission to engine
1) Also starter to transmission
2) Always replace bolts
Items A + B = Dowel sleeves

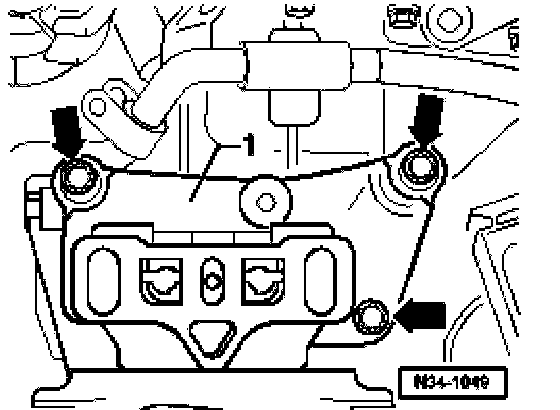

^ Transmission mount -1- to transmission
^ Replace bolts
Bolts -arrows- 50 Nm + 90°

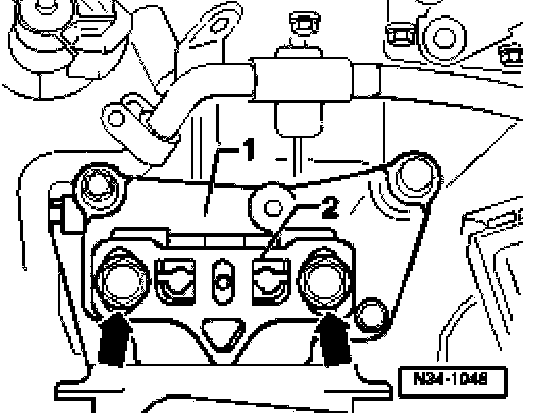

^ Transmission to body
Bolts -arrows- 100 Nm

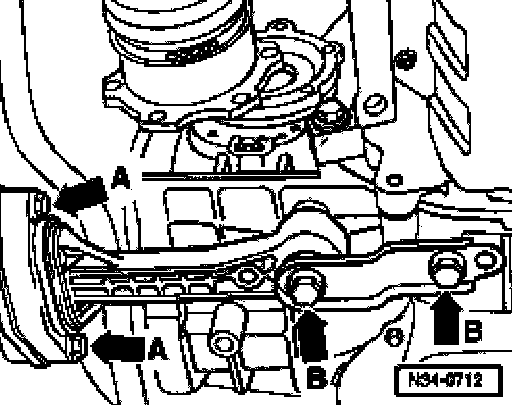

^ Rear transmission mounting
^ Replace bolts
Bolts -A- 20 Nm + 90°
Bolts -B- 40 Nm + 90°

Note: Install engine/transmission mountings stress-free.
