Shift Lever and Shift Lever Housing, Servicing

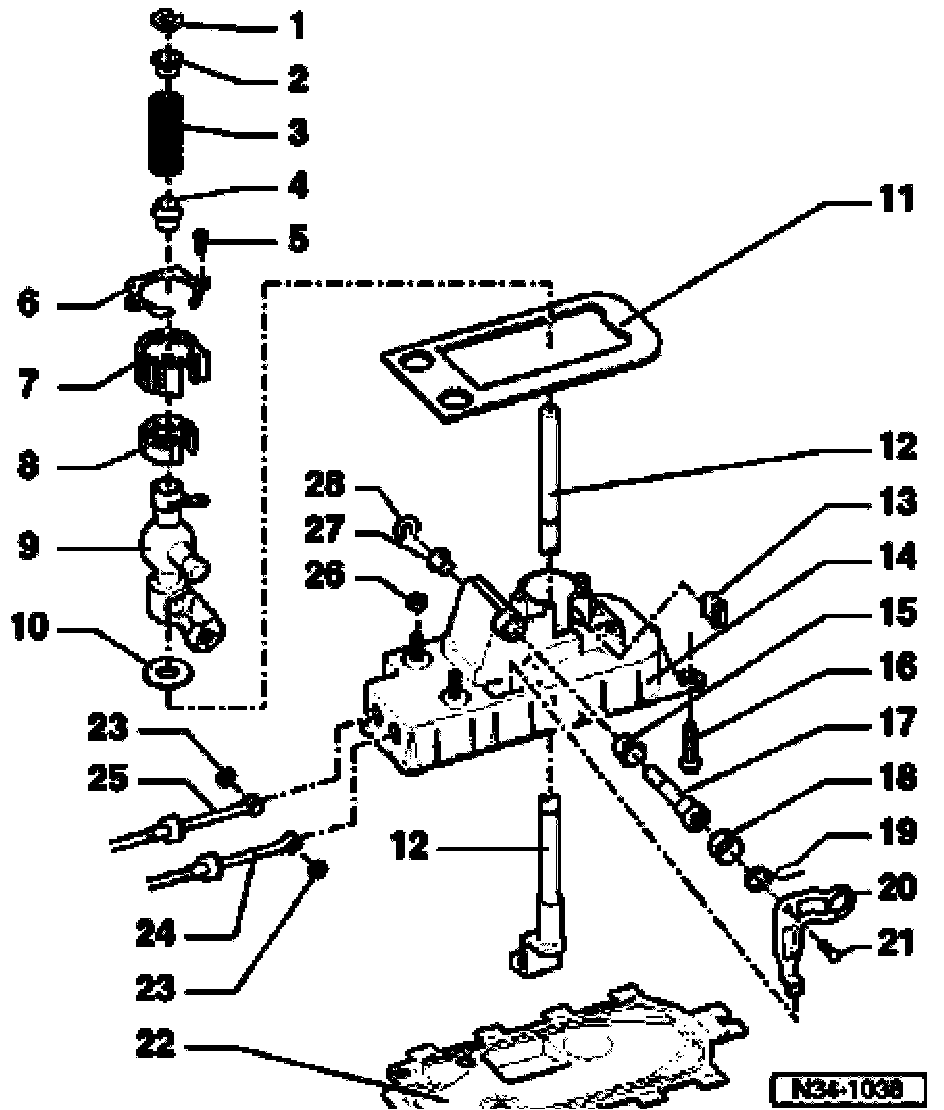

Shift lever and shift lever housing, servicing

Note: Lubricate all mountings and sliding surfaces with Polyurea grease Part No. G 052 142 A2.





1- Circlip
- Removing and installing, Refer to Fig. 1
2- Bushing
3- Spring
4- Bushing
5- Torx screw, 5 Nm
6- Cover plate
7- Damper
8- Bearing shell
9- Gear shift guide
10- Damping washer
11- Gasket
- Between shift housing and floor Self-adhesive
- Bond to shift housing
12- Transmission shift lever
13- Damper
14- Shift housing
15- Bushing
16- Bolt, 25 Nm
17- Fulcrum pin
18- Guide bushing
19- Spring
- Installing, Refer to Fig. 2
20- Gate selector bracket
21- Torx screw, 5 Nm
22- Base plate
- Open tabs to remove
- Replace
23- Lock washer
24- Gate selector cable
25- Gear selector cable
26- Hex nut, 25 Nm
27- Bushing
- Only fits in one position
28- Lock washer

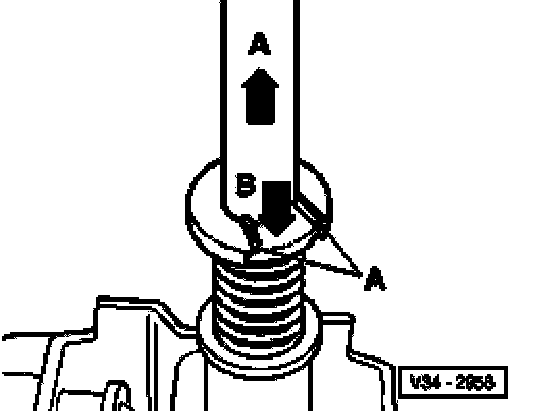

Fig. 1 Removing and installing circlip
- Pull shift lever in arrow direction -A- and at same time push down spacer bushing onto stop with a screwdriver in arrow direction -B-.

Note: Do not tilt spacer bushing when pushing down. Carefully release pressure at groove in gear lever for circlip.





Fig. 2 Installing spring
- Insert spring so that spring extension -A- lies above pin (arrow).
- Pull spring extension -B- down so that it reaches below pin (arrow).
