Shift Lever Knob and Cover, Removing and Installing

Shift lever knob and cover, removing and installing





1- Shift lever knob
- Remove and install together with cover
2- Cover
- Separating from shift lever knob
- connect to shift lever knob before installing, Refer to Fig 1.
- Remove and install together with shift lever knob
3- Sleeve
4- Clamp
- To secure shift lever knob on gear stick
- Secure on shift lever knob - item 1 using pliers V.A.G. 1275
5- Frame
6- Sound insulation

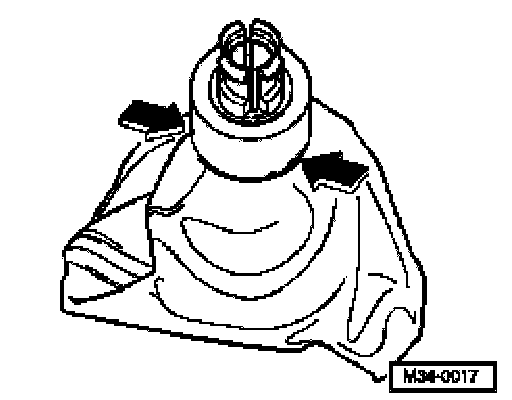

Fig. 1 Shift lever cover, separating and assembling to shift lever knob
^ Turn cover inside out.
^ Carefully pry clamping sleeve (arrow) off with a screwdriver and pull shift lever knob out.
Installation is carried out in the reverse sequence. When installing note the following:
^ Insert shift lever knob in cover.
^ Push clamping sleeve onto shift lever knob and engage.
^ Install shift lever knob and cover together.
