Installed Position of Transmission Selector Lever/Relay Lever

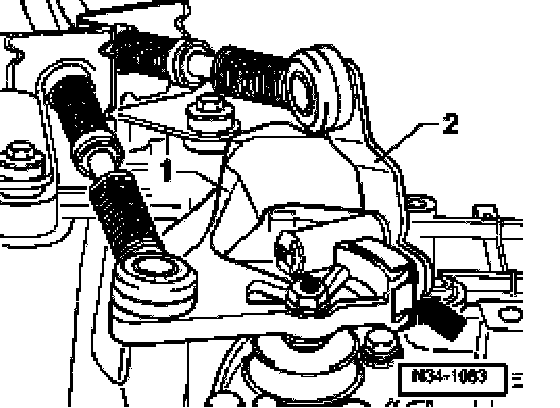

Installation position of transmission selector lever/relay lever
1- Gear selector lever
- With balance weight
2- Relay lever
Locates in guide rail of gear selector lever via shoe (arrow)
