Selector Cables, Assembly Overview - Removing and Installing

5 Speed Manual 02J

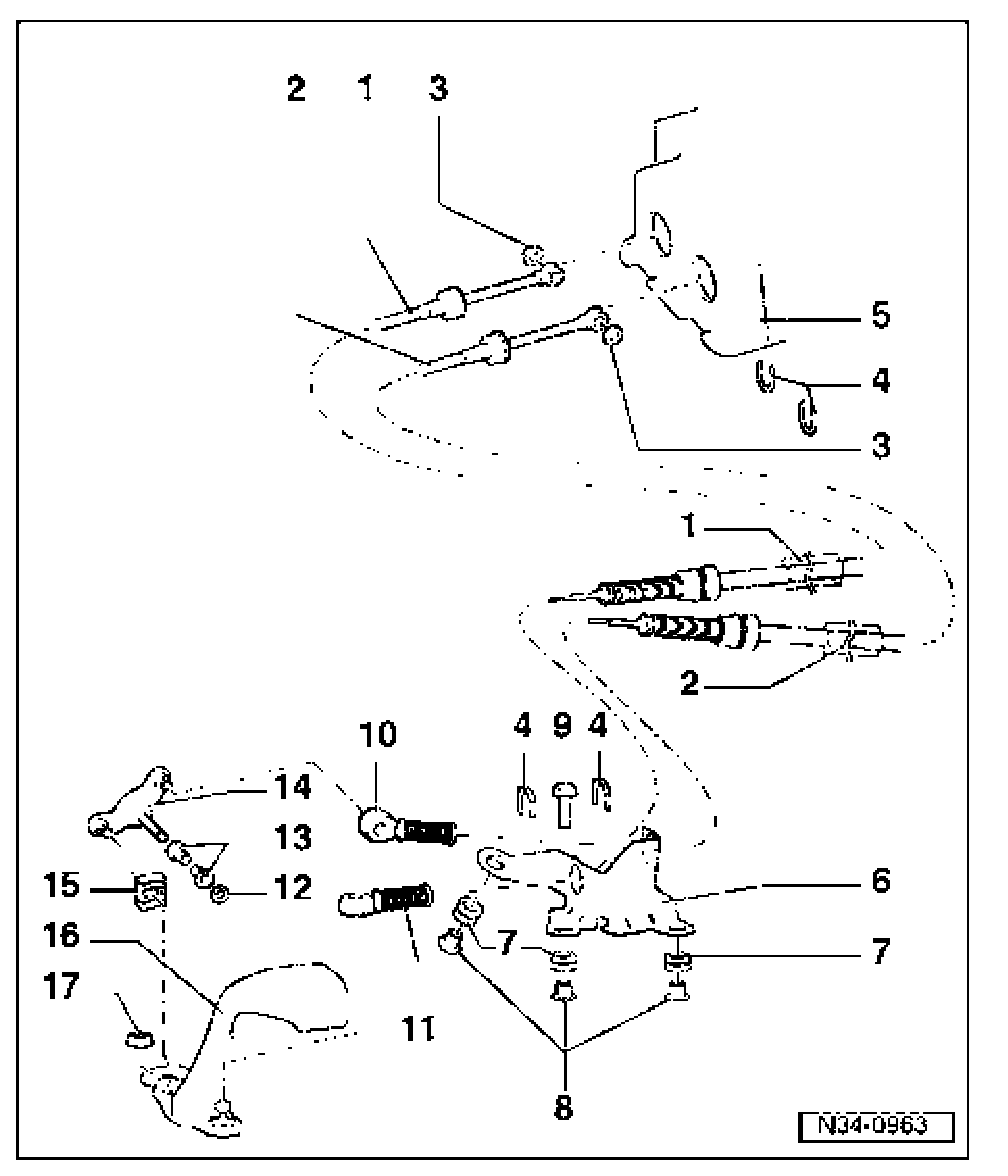

Selector Cables, Assembly Overview - Removing and Installing

Note:

- Lubricate all mountings and sliding surfaces with Polyurea grease Part No. G 052 142 A2.






1 - Gear selector cable
- Press onto gear lever guide
2 - Gate selector cable
- On gate selector bracket
3 - Circlip
4 - Circlip
- Do not damage cable when removing
5 - Gear lever housing
6 - Support bracket
7 - Bushing
- Support bracket mounting to transmission
8 - Distance piece
9 - Hex bolt, 25 Nm
- For support bracket
10 - Cable locking mechanism
- For gate selector cable to relay lever
11 - Cable locking mechanism
- For gear selector cable to gear change lever
12 - Circlip
13 - Bushing
14 - Relay lever
15 - Shoe
16 - Transmission selector lever
- With balance weight
- Install so that master spline aligns with selector shaft
- After installing adjust gear selector mechanism.
17 - Hex nut, 25 Nm
