Transmission Housing and Selector Mechanism

5 Speed Manual 02J

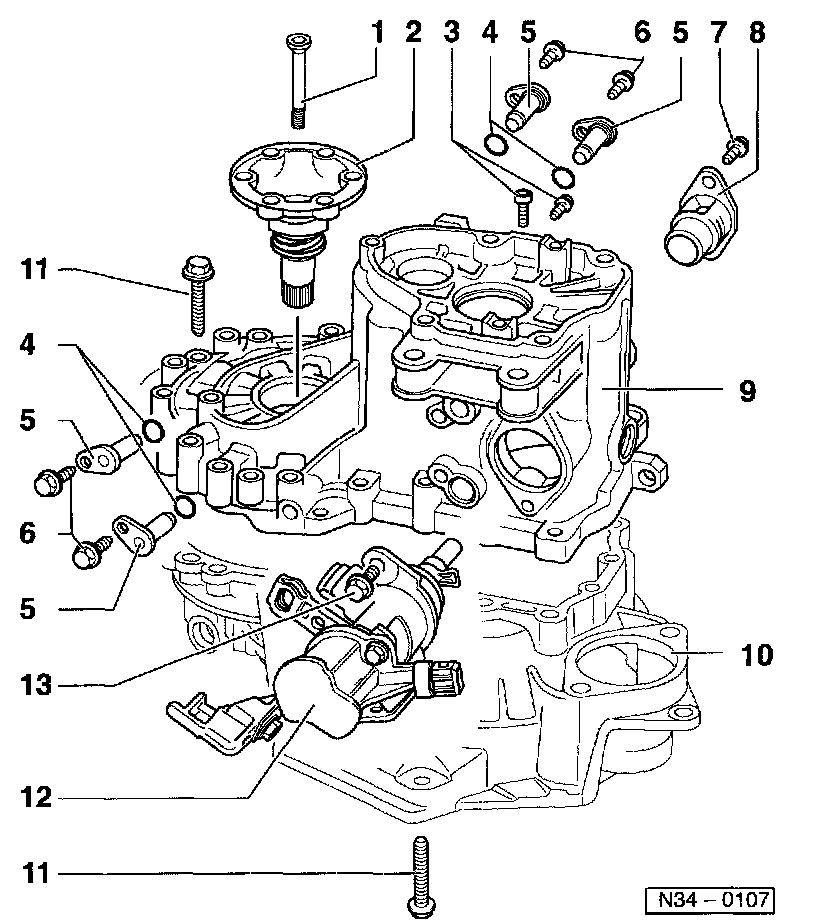

Transmission housing and selector mechanism, removing and installing





1 Cone-head bolt
- 25 Nm (18 ft. lbs.)
2 Flange shaft with spring
- Removing and installing
3 Torx socket-head bolt
- 30 Nm (22 ft. lbs.)
- For reverse shaft support
- Self-locking
- Always replace
4 O-ring
- Always replace
5 Pivot pin
6 Bolt
- 25 Nm (18 ft. lbs.)
7 Bolt
- 25 Nm (18 ft. lbs.)
8 Cover plate
9 Transmission housing
- Servicing
10 Clutch housing
- Servicing
11 1Bolt
- 25 Nm (18 ft. lbs.) + 90°
12 Selector mechanism
- Disassembling and assembling
13 Bolt
- 25 Nm (18 ft. lbs.)
