Transporting the Transmission

Transporting the transmission

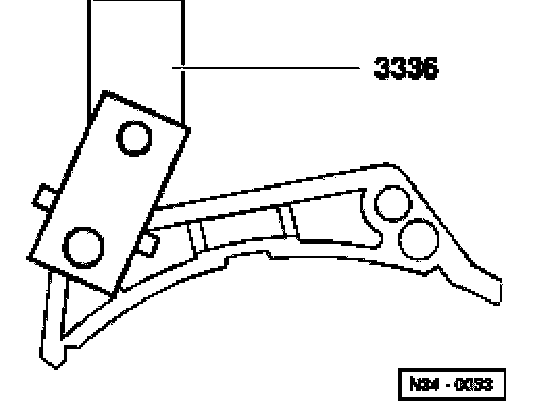

^ Bolt transmission lifting device 3336 to clutch housing.

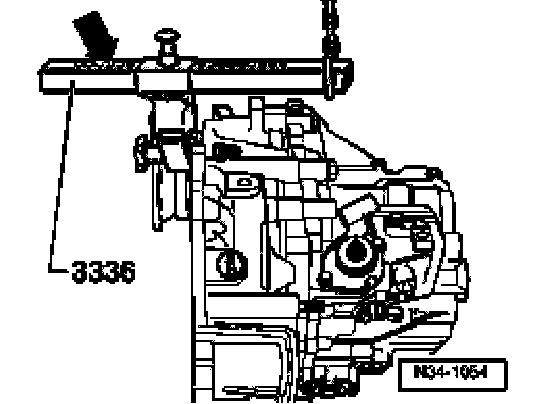

^ Set support beam on sliding piece with locking pin (arrow).
No. of holes visible = 6
^ Take transmission out with workshop crane and transmission lifting device 3336.
^ Lower transmission.
