5 Speed Manual 02J

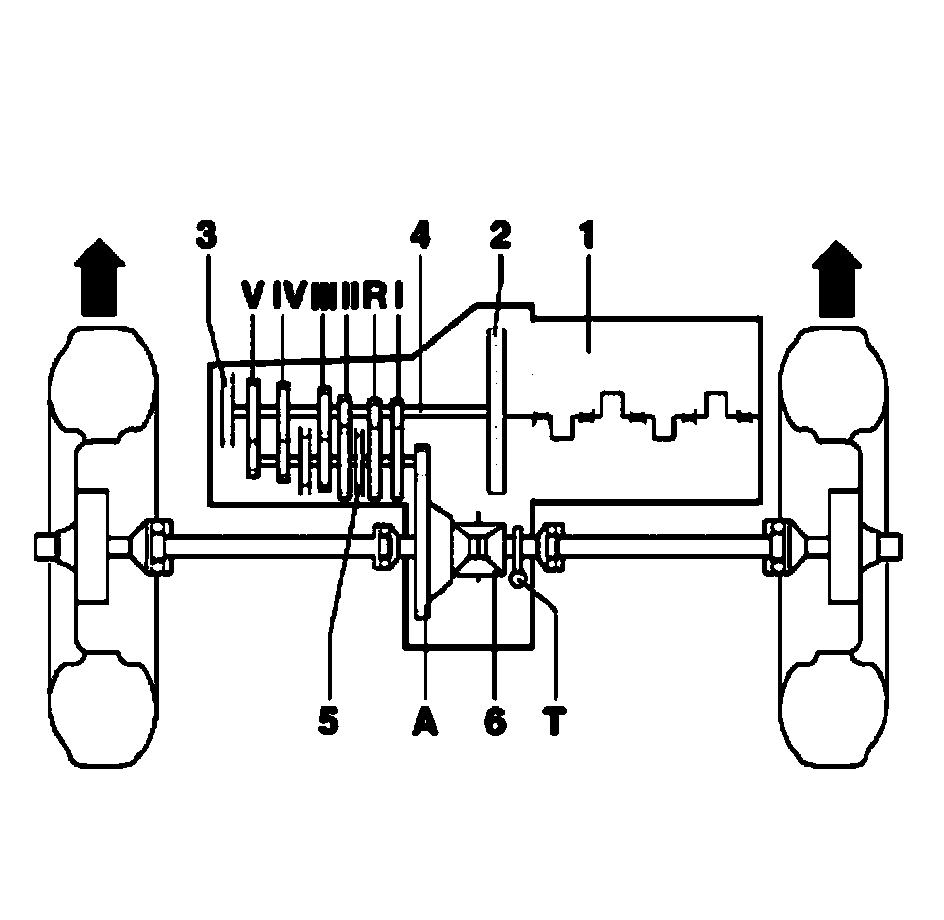

Transmission layout





Designation

1. Engine
2. Clutch
3. Transmission
4. Input shaft
5. Output shaft/pinion shaft
6. Differential
^ Arrows point in direction of travel

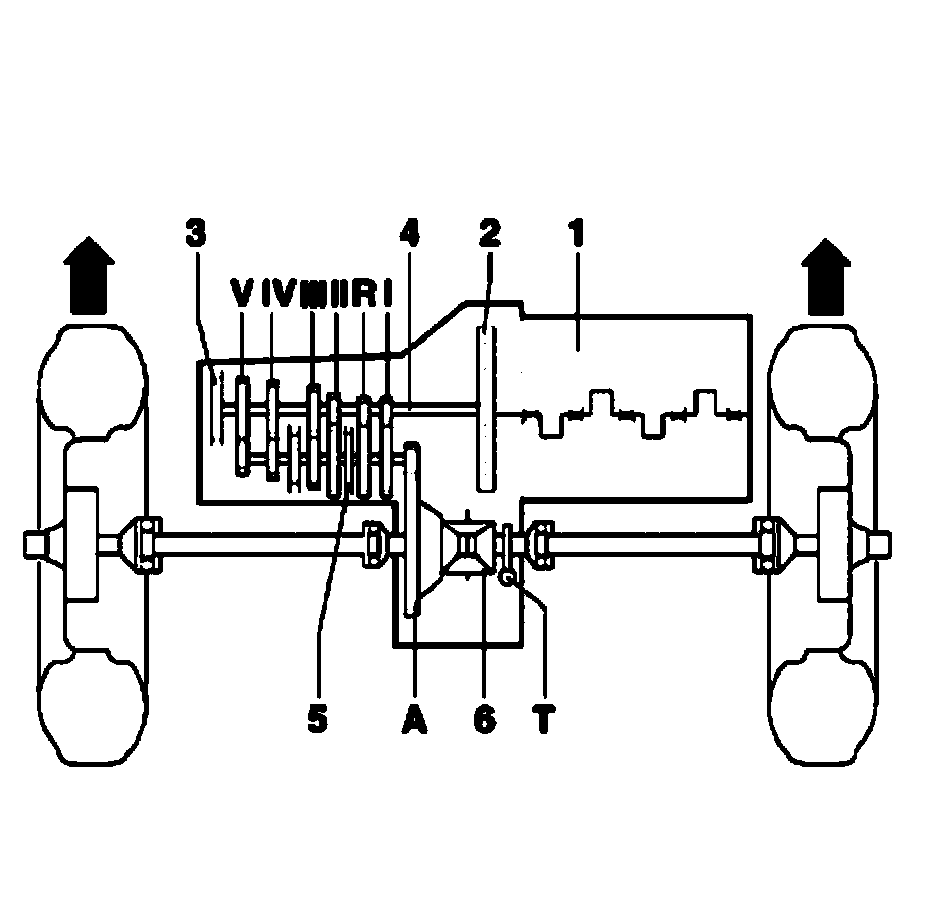

Gear ratios

I - 1st gear
II - 2nd gear
III - 3rd gear
IV - 4th gear
V - 5th gear
R - Reverse gear
A - Final drive
T - Speedometer drive
Arrows point in direction of travel
